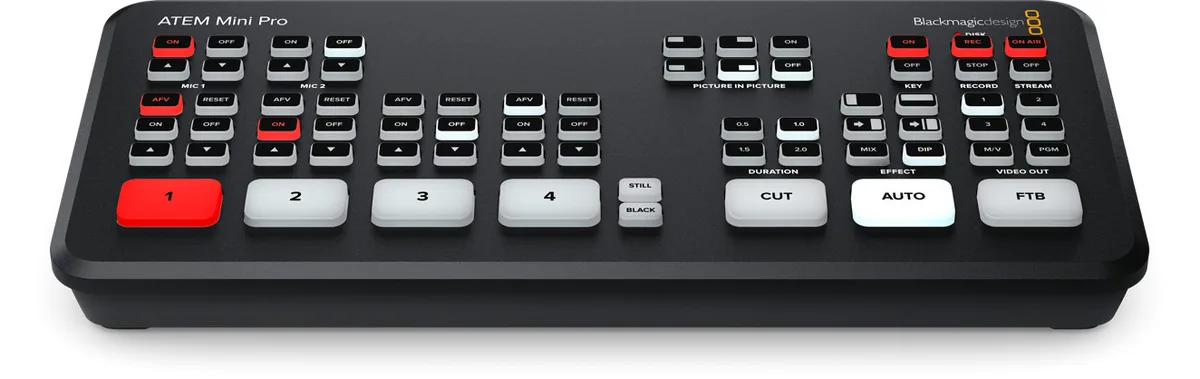

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
Blackmagic

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher

SKU
SWATEMMINIBPR
Model
ATEM Mini Pro
Barcode
9338716006797
  • 4-Channel Live Stream HDMI Switcher
  • Control up to Four BMPCC 6K/4K Cameras
  • Live Tally, Stream and Record Status
  • Record Button, Channel Preview Multiview

Overview

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher by Blackmagic. Listed under Video Switchers in our Video range.

Weight: 19.4 oz / 550 g.

Key features

  • 4-Channel Live Stream HDMI Switcher
  • Control up to Four BMPCC 6K/4K Cameras
  • Live Tally, Stream and Record Status
  • Record Button, Channel Preview Multiview
  • 2-Channel Digital Audio Mixer Per Source

Buy the Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher online

Order the Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher online for €295.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher online kopen met levering in Nederland en België.
  • Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher en ligne avec livraison en France et en Belgique.
  • Compra Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher online con entrega en España.
  • Compra Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher online con consegna in Italia.
  • Kup Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher online z dostawą do Polski.

Specifications

Input/Output

Inputs4 x HDMI Type A 2 x 3.5 mm Stereo Analogue Audio 1 x RJ45 Ethernet
Outputs1 x HDMI 1 x USB Type-C

Video & Audio

Video Input FormatsHDMI Video: 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1080i: 60, 59.94, 50 720p: 60, 59.94, 50 HDMI Resolutions for Computers: 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1080i: 60, 59.94, 50 720p: 60, 59.94, 50
Video Output Formats1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
Video Inputs4 x HDMI
Video Output1 x HDMI
Audio Input2 x 3.5 mm Stereo
Other I/O1 x USB Type-C 1 x RJ45, Gigbit Ethernet
Video Sampling4:2:2 YUV
Colour Precision10-Bit
Colour SpaceRec. 709
Colour Space ConversionHardware-Based, Real Time
Embedded Audio2-Channel Input and Output
Audio Mixer6-Input, 2-Channel
Media Player1 x Player with Fill and Key
Still Image Capacity20
Image Format SupportPNG, TGA, BMP, GIF, JPEG, TIFF

General

Keyers1 x Upstream 1 x Downstream 1 x Advanced Chroma 2 x Linear/Luma 1 x Transition (DVE Only)
LayersUp to 5
Generators1 x Pattern 2 x Colour
DVETransition Keyer
Monitor Resolution1366 x 768 or Greater
Operating System SupportmacOS 10.13, 10.14, or Later Windows 10
Power Input1 x Barrel- 5.5 x 2.5 mm
Voltage12 V
Power Draw18 W
Operating Temperature41 to 104°F / 5 to 40°C
Storage Temperature14 to 140°F / -10 to 60°
Relative Humidity0 to 90% Non-Condensing
Dimensions9.4 x 4.1 x 1.4" / 23.8 x 10.4 x 3.6 cm
Weight19.4 oz / 550 g

In the box

  • Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
  • 12V Power Supply with International Adapters
  • Control Panel Software
  • Limited 1-Year Warranty
