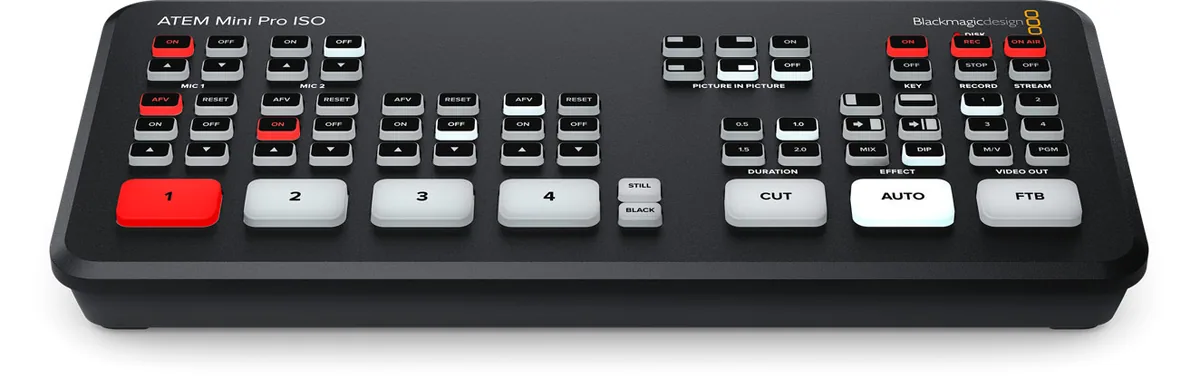

Blackmagic ATEM Mini Pro ISO Live Stream Switcher
Blackmagic

Blackmagic ATEM Mini Pro ISO Live Stream Switcher

SKU
SWATEMMINIBPRISO
Barcode
9338716006872
  • 4-Channel Live Stream HDMI Switcher
  • Programme and 4 x Input ISO Recording
  • Generates DaVinci Resolve Project
  • Live Tally, Stream, and Record Status

Overview

Blackmagic ATEM Mini Pro ISO Live Stream Switcher by Blackmagic, model SWATEMMINIBPRISO. Listed under Video Switchers in our Video range.

Weight: 19.4 oz / 550 g.

Key features

  • 4-Channel Live Stream HDMI Switcher
  • Programme and 4 x Input ISO Recording
  • Generates DaVinci Resolve Project
  • Live Tally, Stream, and Record Status
  • Record Button, Channel Preview Multiview
  • 2-Channel Digital Audio Mixer per Source

Buy the Blackmagic ATEM Mini Pro ISO Live Stream Switcher online

Order the Blackmagic ATEM Mini Pro ISO Live Stream Switcher online for €482.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Blackmagic ATEM Mini Pro ISO Live Stream Switcher online kopen met levering in Nederland en België.
  • Blackmagic ATEM Mini Pro ISO Live Stream Switcher online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Blackmagic ATEM Mini Pro ISO Live Stream Switcher en ligne avec livraison en France et en Belgique.
  • Compra Blackmagic ATEM Mini Pro ISO Live Stream Switcher online con entrega en España.
  • Compra Blackmagic ATEM Mini Pro ISO Live Stream Switcher online con consegna in Italia.
  • Kup Blackmagic ATEM Mini Pro ISO Live Stream Switcher online z dostawą do Polski.

Specifications

Available M/E Layers5 M/E
Effect Types1x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Downstream Keys1x Chroma, DVE 2x Luma
Generators1x Pattern 2x Colour
Audio Mixing2-Channel Mixing

Processing

Switching TypePushbutton
Colour Processing10-Bit 4:2:2 YUV

Input

Number of Video Input Sources4
Video Inputs4x HDMI Female
Input Video FormatHDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Audio Inputs2x 1/8" / 3.5 mm TRS Stereo Analogue Female
Input Audio FormatAnalogue
Embedded Audio InputHDMI: 2-Channel (per Input)

Output

Video Output Channels1
Video Outputs1x HDMI
Output Video FormatHDMI / RJ45 (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio OutputHDMI: 2-Channel (per Output)
Multiview OutputYes
Monitor Output1x HDMI

Connectivity

Other I/O1x RJ45 Control, Firmware, LAN, Sync, Tally, Timecode Input/Output 1x USB-C Control, Firmware Input/Output
IP VideoH.264: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
Transport ProtocolsRTMP
Simultaneous Streams1 Streams

Hardware

OS CompatibilitymacOS 10.14 or Later / Windows 10 or Later
ProcessorNot Specified by Manufacturer
Wi-FiNo
BluetoothNo
Power I/O1x Barrel (12 VDC ) Input
Power Consumption36 W

General

Operating Conditions41 to 104°F / 5 to 40°C up to 90% Humidity
Storage Conditions14 to 140°F / -10 to 60°C
Dimensions9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm
Weight19.4 oz / 550 g

In the box

  • Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher
