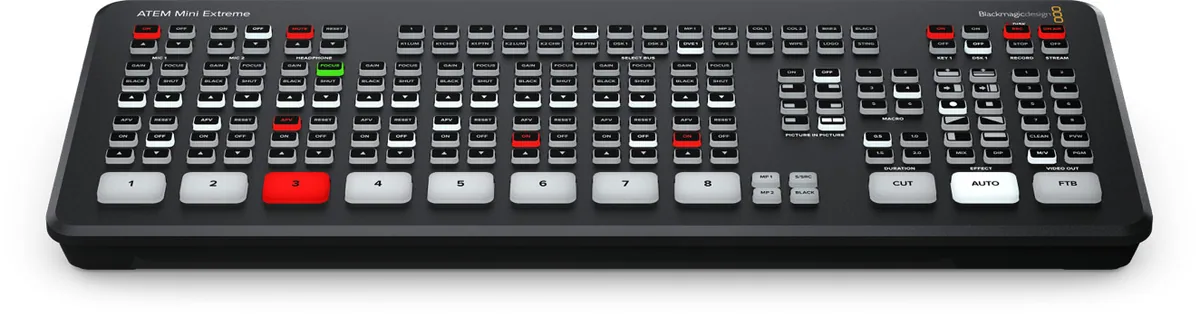

Blackmagic Design ATEM Mini Extreme
Blackmagic

Blackmagic Design ATEM Mini Extreme

SKU
SWATEMMINICEXT
Barcode
9338716007299
  • 8-Channel HDMI Live Streaming Switcher
  • Supports up to 1080p60
  • RTMP Streaming via Ethernet or USB-C
  • Record Programme Out

Overview

Blackmagic Design ATEM Mini Extreme by Blackmagic, model SWATEMMINICEXT. Listed under Video Switchers in our Video range.

Weight: 2.72 lb / 1.23 kg.

Key features

  • 8-Channel HDMI Live Streaming Switcher
  • Supports up to 1080p60
  • RTMP Streaming via Ethernet or USB-C
  • Record Programme Out
  • 11-Input, 2-Channel Audio Mixer
  • Input Frame Rate and Format Convertor

Buy the Blackmagic Design ATEM Mini Extreme online

Order the Blackmagic Design ATEM Mini Extreme online for €1,050.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Blackmagic Design ATEM Mini Extreme online kopen met levering in Nederland en België.
  • Blackmagic Design ATEM Mini Extreme online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Blackmagic Design ATEM Mini Extreme en ligne avec livraison en France et en Belgique.
  • Compra Blackmagic Design ATEM Mini Extreme online con entrega en España.
  • Compra Blackmagic Design ATEM Mini Extreme online con consegna in Italia.
  • Kup Blackmagic Design ATEM Mini Extreme online z dostawą do Polski.

Specifications

Available M/E Layers9 M/E
Effect Types2x DVE 4x Luma Key 4x Chroma Key
Graphics Memory20 Images
Downstream Keys2x Chroma, Luma, DVE
Generators5x Pattern 2x Colour
Audio Mixing2-Channel Mixing

Processing

Switching TypePushbutton, Software
Processing Resolution1080p

Input

Number of Video Input Sources8
Video Inputs8x HDMI
Input Video FormatHDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Audio Inputs2x 1/8" / 3.5 mm TRS Stereo Analogue Female
Input Audio FormatAnalogue
Embedded Audio InputHDMI: 2-Channel (per Input)

Output

Video Output Channels2
Video Outputs2x HDMI
Output Video FormatHDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Outputs1x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analogue Female
Embedded Audio OutputHDMI: 2-Channel
Multiview Output16-Way Multiview via HDMI

Connectivity

Other I/O1x RJ45 2x USB-C
HDCP SupportNo
IP VideoH.264: 1920 x 1080 Encoding
Transport ProtocolsRTMP
Simultaneous Streams1 Streams
Recording Modes1920 x 1080p up to 60 fps (MP4)

Hardware

OS CompatibilityComputer: macOS 10.15 or Later / Windows 10 or Later Mobile: Android/iOS
ProcessorNot Specified by Manufacturer
Wi-FiNo
BluetoothNo
Power I/O1x Barrel (12 VDC ) Input
Power ConsumptionDevice: 36 W

General

Operating Conditions41 to 104°F / 5 to 40°C up to 70% Humidity
Storage Conditions14 to 140°F / -10 to 60°C
Dimensions14.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cm
Weight2.72 lb / 1.23 kg

In the box

  • Blackmagic ATEM Mini Extreme
