Blackmagic Design Videohub 20×20 12G Zero-Latency Video Router
Blackmagic

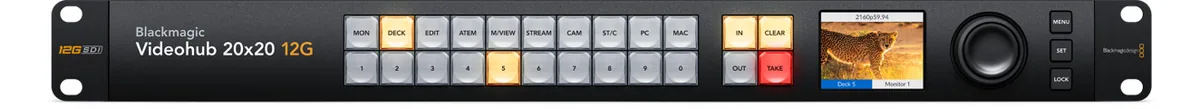

Blackmagic Design Videohub 20×20 12G Zero-Latency Video Router

SKU
VHUBSMAS12G2020
Barcode
9338716008364
  • Zero-Latency Routing Switcher
  • 20 x 12G-SDI Inputs/20 x 12G-SDI Outputs
  • Supports Up to DCI 4K60 Video
  • Combines SD, HD, UHD 4K & DCI 4K Video

Overview

Blackmagic Design Videohub 20×20 12G Zero-Latency Video Router by Blackmagic, model VHUBSMAS12G2020. Listed under Video Routers, Switchers & DA’s in our Video range.

Weight: 7.87 lb / 3.57 kg.

Key features

  • Zero-Latency Routing Switcher
  • 20 x 12G-SDI Inputs/20 x 12G-SDI Outputs
  • Supports Up to DCI 4K60 Video
  • Combines SD, HD, UHD 4K & DCI 4K Video
  • Push-Button, Knob & Ethernet Control
  • 2.2″ Front Panel LCD Status Display

Buy the Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router online

Order the Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router online for €2,321.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router online kopen met levering in Nederland en België.
  • Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router en ligne avec livraison en France et en Belgique.
  • Compra Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router online con entrega en España.
  • Compra Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router online con consegna in Italia.
  • Kup Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router online z dostawą do Polski.

Specifications

Processing

Switching TypePushbutton, Software
Processing ResolutionDCI 4K at 60
Colour Processing8-Bit 4:2:2 10-Bit 4:2:2 12-Bit 4:4:4
Audio Processing48 kHz / 24-Bit

Input

Video Inputs20 x BNC (12G-SDI)
Input Video FormatSDI (10/12-Bit 4:4:4 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps
Embedded Audio InputSDI

Output

Video Outputs20 x BNC (12G-SDI)
Output Video FormatSDI (10/12-Bit 4:4:4 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps
Embedded Audio OutputSDI

Connectivity

Other I/O1 x RJ45 LAN 1 x USB-C
Video Standard ComplianceSMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10 ITU -R BT.601/BT.656

Display

Display Size2.2"

Hardware

OS CompatibilitymacOS 12.0 macOS 13.0 or Later Windows 10 (64-Bit Only) Windows 11 *As of April, 2023: Cheque with manufacturer for the most up-to-date compatibility
Wi-FiNone
BluetoothNone

Power

Power I/O1 x IEC C14 (100 to 240 VAC) Input
Power Consumption27.5 W

Environmental

Operating Temperature32 to 104°F / 0 to 40°C
Storage Temperature-4 to 140°F / -20 to 60°C
Operating Humidity0 to 90% (Non-Condensing)

General

Rack Form Factor1 RU
Dimensions19 x 9.3 x 1.74" / 48.3 x 23.6 x 4.42 cm
Weight7.87 lb / 3.57 kg

In the box

  • Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router
