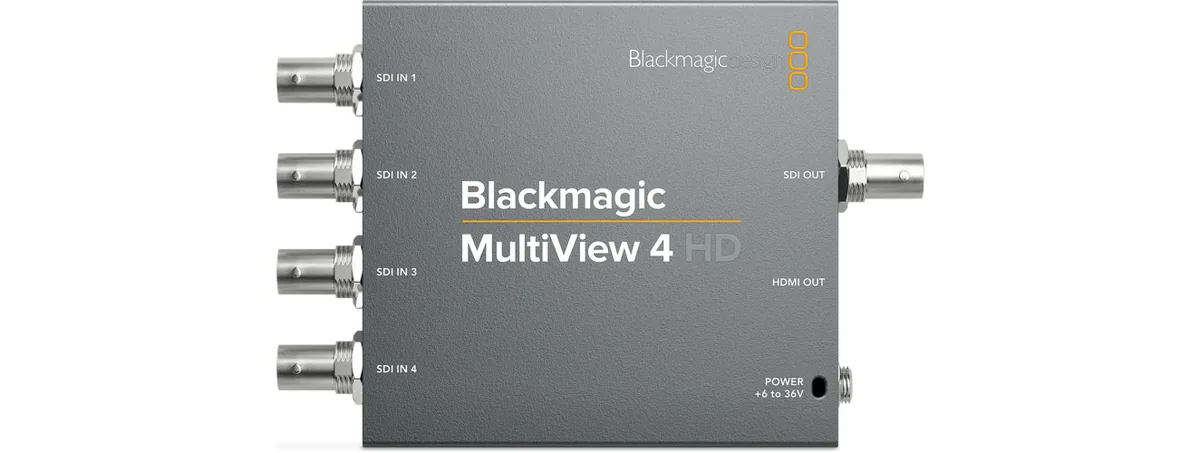

Blackmagic Design MultiView 4 HD
Blackmagic

Blackmagic Design MultiView 4 HD

SKU
HDL-MULTIP3G/04HD
Model
MultiView 4 HD
Barcode
9338716005424
  • 1x SDI & 1x HDMI MultiView Outputs
  • Auto detection of SD or HD
  • USB 2.0 Configuration
  • 10-bit SD-SDI and HD-SDI Inputs

Overview

Blackmagic Design MultiView 4 HD by Blackmagic. Listed under Video Routers, Switchers & DA’s in our Video range.

Key features

  • 1x SDI & 1x HDMI MultiView Outputs
  • Auto detection of SD or HD
  • USB 2.0 Configuration
  • 10-bit SD-SDI and HD-SDI Inputs
  • SDI Reclocking

Buy the Blackmagic Design MultiView 4 HD online

Order the Blackmagic Design MultiView 4 HD online for €203.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Blackmagic Design MultiView 4 HD online kopen met levering in Nederland en België.
  • Blackmagic Design MultiView 4 HD online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Blackmagic Design MultiView 4 HD en ligne avec livraison en France et en Belgique.
  • Compra Blackmagic Design MultiView 4 HD online con entrega en España.
  • Compra Blackmagic Design MultiView 4 HD online con consegna in Italia.
  • Kup Blackmagic Design MultiView 4 HD online z dostawą do Polski.

Specifications

Connections

SDI Video Inputs4 x 10-bit SD-SDI and HD-SDI
SDI Video Outputs1 x HD-SDI
SDI Rates270Mb, 1.5G, 3G
SDI Video Multi View Outputs1 x 10-bit HD-SDI
HDMI Video Multi View Outputs1 x HDMI type A connector. Output supports EDID of the monitor
SDI ReclockingOn all SDI outputs, auto switching between standard definition or high definition
Reference InputNone
Multi Rate SupportAuto detection of SD or HD
UpdatesUSB 2.0 high speed (480Mb/s) interface
ConfigurationUSB 2.0

Standards

SD Video Standards525i59.94 NTSC, 625i50 PAL
HD Video Standards720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24 1080i50, 1080i59.94, 1080i60
2K Video Standards2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
Audio MetersEach view, VU standard
Source RoutingNone
SDI Video Sampling4:2:2 and 4:4:4
SDI Audio SamplingTelevision standard sample rate of 48kHz and 24-bit
SDI Color Precision10-bit 4:2:2 and 4:4:4
SDI Color SpaceYUV or RGB for inputs, YUV for outputs
SDI Auto SwitchingAutomatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard
SDI Metadata SupportVideo payload identification ancillary data as per SMPTE 352M

Control

Built in Control PanelNone
External Control PanelNone

Software

Software ControlMultiView software included free for Windows™ and Mac OS X™
Internal Software UpgradeVia included updater application

Operating Systems

MacMac OS X 10.11 El Capitan macOS Sierra or later
WindowsWindows 8.1 Windows 10

Power Requirements

Power Supply+12V universal power supply included with international socket adapters for all countries. Cable tie point
Power Fail ProtectionMultiView 4 HD settings preserved and restored instantly at power on.
Power Consumption5.5 Watts
Operational Voltage Range6 to 36V DC

Environmental Specifications

Operating temperature0° to 40° C (32° to 104° F)
Storage temperature-20° to 45° C (-4° to 113° F)
Relative Humidity0% to 90% non-condensing

In the box

  • Blackmagic MultiView 4 HD
  • Universal power supply with international socket adapters
