Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher
Blackmagic

Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher

SKU
SWATEMSCN2/1ME1/HD
Barcode
9338716007725
  • 10 Standards Converted 3G‑SDI Inputs
  • 6 Independent 3G‑SDI Aux Outputs
  • USB Webcam Output
  • DVE, Chroma Keyers, Media Players, Multiview & More

Overview

Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher by Blackmagic, model SWATEMSCN2/1ME1/HD. Listed under Video Routers, Switchers & DA’s in our Video range.

Key features

  • 10 Standards Converted 3G‑SDI Inputs
  • 6 Independent 3G‑SDI Aux Outputs
  • USB Webcam Output
  • DVE, Chroma Keyers, Media Players, Multiview & More

Buy the Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher online

Order the Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher online for €1,010.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher online kopen met levering in Nederland en België.
  • Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher en ligne avec livraison en France et en Belgique.
  • Compra Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher online con entrega en España.
  • Compra Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher online con consegna in Italia.
  • Kup Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher online z dostawą do Polski.

Specifications

Connections

Total Video Inputs10
Total Video Outputs6
SDI Rates1.5G, 3G
Total Audio Inputs2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback.
Total Audio Outputs1 x 5 pin XLR Talkback.
SDI Audio Inputs2 Ch embedded audio on all SDI inputs.
SDI Audio Outputs2 Ch embedded audio on all SDI outputs.
Timecode ConnectionsNone
Reference InputTri-Sync or Black Burst.
Video Input Re-SyncOn all 10 inputs.
Frame Rate and Format ConvertersOn all 10 inputs.
SDI Aux OutputsAny of the 6 SDI outputs.
SDI Preview OutputsAny of the 6 SDI outputs.
SDI Program OutputsAny of the 6 SDI outputs.
Down Converted SDI Program OutputNone
Webcam Output1 x USB-C supporting 720p or 1080p at PGM frame rate.
Total Multi Views1 x 3G-SDI
Control Panel ConnectionEthernet. Direct connection between panel and chassis, or via network.
Internal Timecode GeneratorYes
TalkbackRJ45 for 3rd party talkback systems.
Tally OutputAdded via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
EthernetSupports 10/100/1000 BASE-T.
Computer Interface1 x USB-C supports USB 3.1 Gen 1 (5Gb/s)

Standards

SD Video StandardsNone
HD Video Standards720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SDI ComplianceSMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video Sampling4:2:2
Colour Precision10-bit.
Colour SpaceREC 709
SDI Auto SwitchingAutomatically detects between 1.5G-SDI and level A or level B 3G-SDI.

Product Specifics

Upstream Keyers4
Downstream Keyers1
Advanced Chroma Keyers4
Talkback SupportYes
Mix Minus SupportYes
Linear/Luma Keyers5
Transition Keyer (Stinger/DVE)1 Stinger, 1 DVE.
Total Number of Layers7
Pattern Generators5
Colour Generators2
Control PanelFront fascia emergency switching, software or optional hardware panel.
Routable Windows16
TallyRed for program and green for preview indication.
Windows Source LabelsYes

Multi View Monitoring

Multi View Monitoring1 x multi view configurable to 16, 13, 10, 7 or 4 up view. Includes monitoring of Program, Preview, Inputs, Media Players, DSK, Clean Feed with optional labels and audio meters.
Multi View Video StandardHD
Display Minimum Resolution1366 x 768

Media Player

Media Players2
ChannelsFill and key for each media player.
Media Pool Still Image Capacity20
Media Pool Clip Capacity2 x up to 1080p60.
Media Player Clip Length in 720 HD400 frames.
Media Player Clip Length in 1080 HD200 frames.
Media Pool Still Image FormatPNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File FormatTGA Sequence.
Media Pool Audio File FormatWAV, MP3 and AIFF.

Display

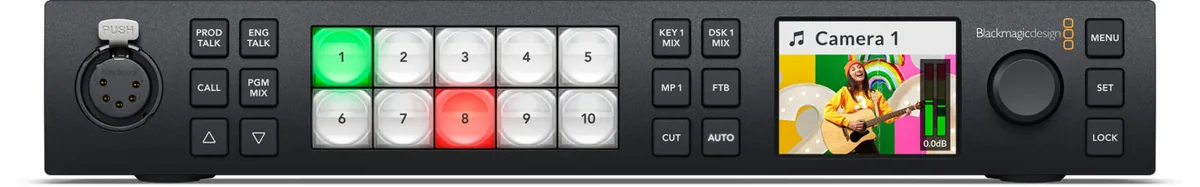

Front panelBuilt in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.

Processing

Processing Delay< 10 lines.
Audio Mixer28 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down ConversionNone

Software

Control Panel IncludedATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11.
Software UpdatesUsing USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.
ConfigurationSet via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Operating SystemsMac 11.1 Big Sur, Mac 12.0 Monterey or later. Windows 10 and 11.

Power Requirements

Power Supply1 x Internal 100 - 240 AC.
Power Usage36W

In the box

  • ATEM 1 M/E Constellation HD
  • Welcome wallet with QR code for software download
