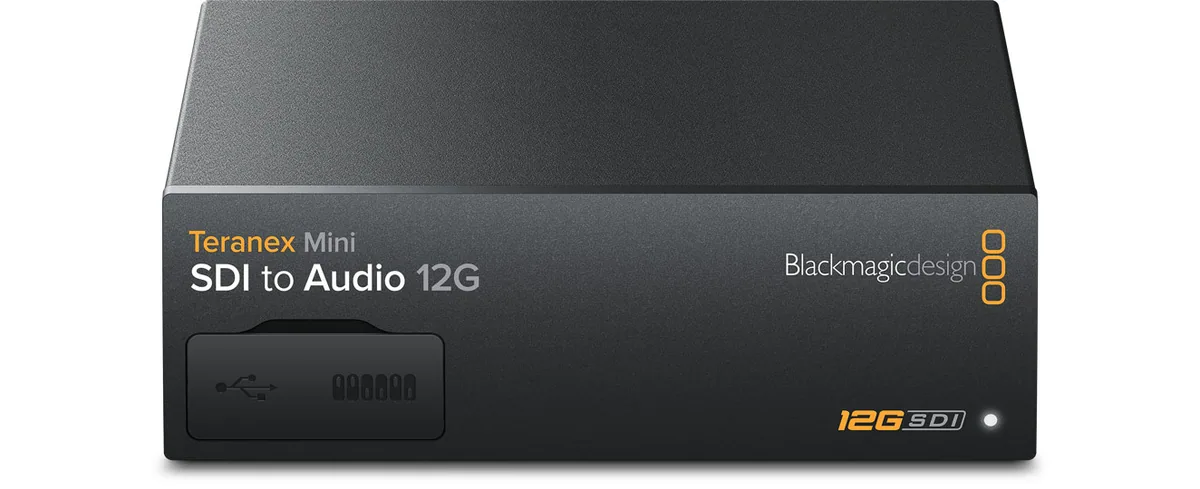

Blackmagic Design Teranex Mini SDI to Audio 12G Converter
Blackmagic

Blackmagic Design Teranex Mini SDI to Audio 12G Converter

SKU
CONVNTRM/CA/SDIAU
Model
Teranex Mini
Barcode
9338716003284
  • Advanced High-Data Rate De-Embedder
  • De-Embed Audio from up to 4K SDI Signals
  • Output via XLR, AES/EBU, RCA, or S/PDIF
  • 12G-SDI Input and Output

Overview

Blackmagic Design Teranex Mini SDI to Audio 12G Converter by Blackmagic. Listed under Signal Converters in our Video range.

Weight: 0.6 kg.

Key features

  • Advanced High-Data Rate De-Embedder
  • De-Embed Audio from up to 4K SDI Signals
  • Output via XLR, AES/EBU, RCA, or S/PDIF
  • 12G-SDI Input and Output
  • Supports up to Full 4K DCI 4096x2160p

Buy the Blackmagic Design Teranex Mini SDI to Audio 12G Converter online

Order the Blackmagic Design Teranex Mini SDI to Audio 12G Converter online for €580.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Blackmagic Design Teranex Mini SDI to Audio 12G Converter online kopen met levering in Nederland en België.
  • Blackmagic Design Teranex Mini SDI to Audio 12G Converter online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Blackmagic Design Teranex Mini SDI to Audio 12G Converter en ligne avec livraison en France et en Belgique.
  • Compra Blackmagic Design Teranex Mini SDI to Audio 12G Converter online con entrega en España.
  • Compra Blackmagic Design Teranex Mini SDI to Audio 12G Converter online con consegna in Italia.
  • Kup Blackmagic Design Teranex Mini SDI to Audio 12G Converter online z dostawą do Polski.

Specifications

SDI Video Input1x 12G-SDI SD/HD/2K/4K auto switching
SDI Video Output1x 12G-SDI output
Analogue Audio Output2 channels professional balanced analogue audio via XLR connectors 2 channel unbalanced analogue line level via RCA connectors Right XLR can be configured for timecode output
AES/EBU Audio Output4 channels professional 110 ohm balanced digital audio via XLR connectors Right XLR can be configured for timecode output
Optical Audio OutputS/PDIF signal with TOSLINK connector
Multi Rate SupportAutomatic switching between SD/HD/2K and 4K
Updates and ConfigurationUSB or Ethernet
Re-ClockingYes
SD Format Support525/29.97 NTSC, 625/25 PAL
HD Format Support1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60
2K Format Support2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25
4K Format Support3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
SDI ComplianceSMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036
SDI Video RatesSDI video connections are auto switching between SD-SDI, HD-SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI
SDI Video Sampling4:2:2 and 4:4:4
SDI Audio SamplingTelevision standard sample rate of 48 kHz and 24-bit
SDI Colour PrecisionYUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K
SDI Colour SpaceREC 601, REC 709
Software ControlMac OS X and Windows software upgrade via USB and Ethernet
Internal Software UpgradeVia included updater application
Basic Settings ControlMini Switches, USB, and Ethernet via free software utility
Power Supply1x built-in international AC power supply with IEC C14 inlet IEC power cable required (not included) 90 - 240 VAC input
Power Over EthernetCan be powered via 48 VDC using PoE (Power-over-Ethernet)
Power Consumption15 W
Operational Voltage Range90 - 240 VAC
Operating Temperature0 to 40°C
Storage Temperature-20 to 60°C
Relative Humidity0 to 90% non-condensing
DimensionsW x H x D: 14 x 4.6 x 17 cm (with SDI port included)
Weight0.6 kg

In the box

  • Blackmagic Design Teranex Mini SDI to Audio 12G Converter
  • Software SD Card
  • Limited 3-Year Warranty
