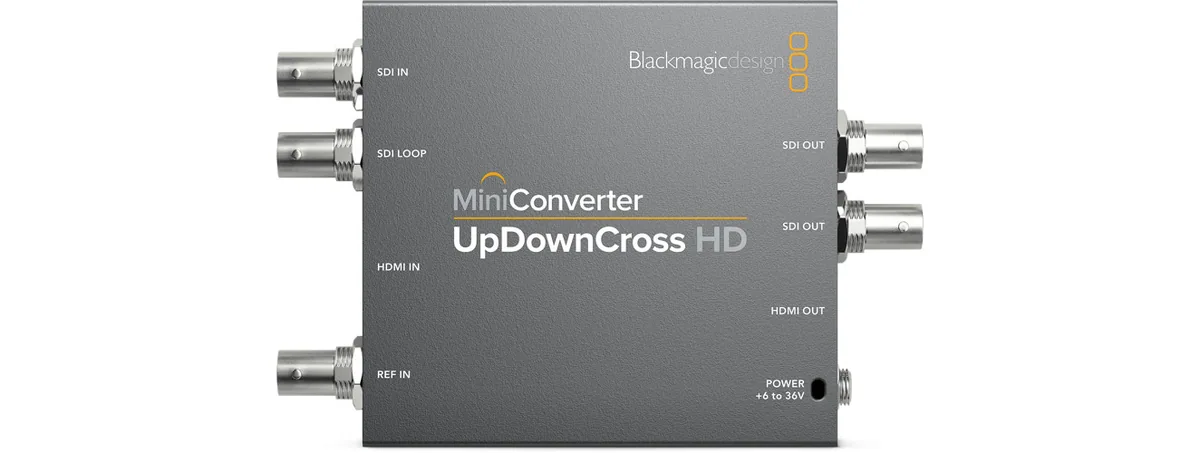

Blackmagic Design Mini Converter UpDownCross HD
Blackmagic

Blackmagic Design Mini Converter UpDownCross HD

SKU
CONVMUDCSTD/HD
Model
CONVMUDCSTD
Barcode
9338716005417
  • Compact 3G-SDI and HDMI converter
  • Convert Between SD to HD Video Formats
  • Up / Down / Cross Conversions
  • SD/HD/3G-SDI Input

Overview

Blackmagic Design Mini Converter UpDownCross HD by Blackmagic, model CONVMUDCSTD. Listed under Signal Converters in our Video range.

Key features

  • Compact 3G-SDI and HDMI converter
  • Convert Between SD to HD Video Formats
  • Up / Down / Cross Conversions
  • SD/HD/3G-SDI Input

Buy the Blackmagic Design Mini Converter UpDownCross HD online

Order the Blackmagic Design Mini Converter UpDownCross HD online for €161.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Blackmagic Design Mini Converter UpDownCross HD online kopen met levering in Nederland en België.
  • Blackmagic Design Mini Converter UpDownCross HD online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Blackmagic Design Mini Converter UpDownCross HD en ligne avec livraison en France et en Belgique.
  • Compra Blackmagic Design Mini Converter UpDownCross HD online con entrega en España.
  • Compra Blackmagic Design Mini Converter UpDownCross HD online con consegna in Italia.
  • Kup Blackmagic Design Mini Converter UpDownCross HD online z dostawą do Polski.

Specifications

Connections

SDI Video Inputs1 x SD, HD or 3G-SDI Video Input and 1 x External Reference Input
HDMI Video Input1 x HDMI type A connector
SDI Video Outputs1 x loop out and 2 x outputs
HDMI Video OutputHDMI type A out. Output supports EDID of the monitor
SDI Rates270Mb, 1.5G, 3G
Reference InputBlack burst and Tri-Sync for SD & HD
Multi Rate SupportAuto detection of HD or standard definition SDI inputs
Updates and ConfigurationUSB
ReclockingYes

Standards

SD Video Standards525i59.94 NTSC, 625i50 PAL
HD Video Standards720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24 1080i50, 1080i59.94, 1080i60
HDMI Input Video Standards720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656 and ITU-R BT.601
SDI Video RatesSDI video connections are switchable between standard definition and high definition
SDI Video Sampling4:2:2
SDI Audio SamplingTelevision standard sample rate of 48 kHz and 24 bit
SDI Color Precision4:2:2
SDI Color SpaceYUV
SDI Auto SwitchingAutomatically detects SD, HD or 3G‑SDI

Format Conversion

Video ConversionConvert any SD and HD input to "720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60"
Computer ScalingScale DVI resolutions 640x480, 800x600, 1024x768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60

Operating Systems

MacmacOS 10.12 Sierra macOS High Sierra 10.13 or later
WindowsWindows 8.1 Windows 10

Power Requirements

Power Supply+12V universal power supply included with international socket adapters for all countries
Power Consumption5W
Operational Voltage Range6 to 36 Vdc

Environmental Specifications

Operating Temperature0° to 40° C (32° to 104° F)
Storage Temperature-20° to 45° C (-4° to 113° F)
Relative Humidity0% to 90% non-condensing

In the box

  • Blackmagic Design Mini Converter UpDownCross HD
  • 12V universal power supply with international socket adapters
