Blackmagic Micro Converter Bidirectional SDI/HDMI 3G
Blackmagic

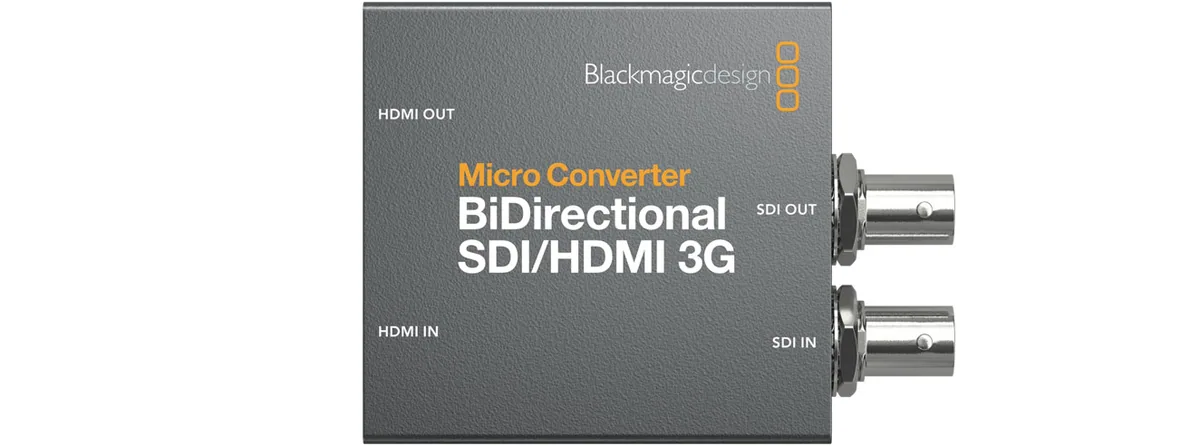

Blackmagic Micro Converter Bidirectional SDI/HDMI 3G

SKU
CONVBDC/SDI/HDMI03G
Barcode
9338716007008
  • Simultaneous SDI to HDMI & HDMI to SDI
  • 1 x SD/HD/3G-SDI & 1x HDMI Input/Output
  • Supports up to DCI 2K60 Video
  • BMPCC Control & Tally via SDI Switcher

Overview

Blackmagic Micro Converter Bidirectional SDI/HDMI 3G by Blackmagic, model CONVBDC/SDI/HDMI03G. Listed under Signal Converters in our Video range.

Weight: 5.9 oz / 167 g.

Key features

  • Simultaneous SDI to HDMI & HDMI to SDI
  • 1 x SD/HD/3G-SDI & 1x HDMI Input/Output
  • Supports up to DCI 2K60 Video
  • BMPCC Control & Tally via SDI Switcher
  • USB Power/SDI Re-Clocking/HDMI Timecode
  • Automatic Input Signal Detection

Buy the Blackmagic Micro Converter Bidirectional SDI/HDMI 3G online

Order the Blackmagic Micro Converter Bidirectional SDI/HDMI 3G online for €74.99, VAT included. Delivery is €9.95 to any of the 27 EU countries, or free when your order passes €100. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Blackmagic Micro Converter Bidirectional SDI/HDMI 3G online kopen met levering in Nederland en België.
  • Blackmagic Micro Converter Bidirectional SDI/HDMI 3G online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Blackmagic Micro Converter Bidirectional SDI/HDMI 3G en ligne avec livraison en France et en Belgique.
  • Compra Blackmagic Micro Converter Bidirectional SDI/HDMI 3G online con entrega en España.
  • Compra Blackmagic Micro Converter Bidirectional SDI/HDMI 3G online con consegna in Italia.
  • Kup Blackmagic Micro Converter Bidirectional SDI/HDMI 3G online z dostawą do Polski.

Specifications

Inputs / Outputs

Video Inputs1x BNC (3G-SDI) 1x HDMI (2.0)
Audio InputsNo
Video Outputs1x BNC (3G-SDI) 1x HDMI (2.0)
Audio OutputsNo
Other I/O1x USB-C Input
Expansion SlotsNo

Format Support

Input Video FormatSDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 59.94 fps 576i / 625 lines at 50 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 29.97 fps 576i / 625 lines at 25 fps
Output Video FormatSDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 29.97 fps 576i / 625 lines at 25 fps
Embedded AudioHDMI/SDI

Standards

Video Standard ComplianceSMPTE 259M/292M/296M/424M/425M-A/425M-B
HDR SupportNo

Hardware

Tally LightNo
WirelessNo
OS CompatibilitymacOS 10.15 macOS 11.1 or Later Windows 10 (64-Bit Only)

Power

Power I/O1x USB-C (4.4 to 5.2 VDC ) Input
Power Consumption2.5 W

Environmental

Operating Temperature32 to 72°F / 0 to 40°C
Storage Temperature-4 to 140°F / -20 to 60°C
Operating Humidity0 to 90%

General

Dimensions3.13 x 1.8 x 0.98" / 79.5 x 45.7 x 24.89 mm
Weight5.9 oz / 167 g

In the box

  • Blackmagic Design Micro Convertor Bidirectional SDI/HDMI 3G
