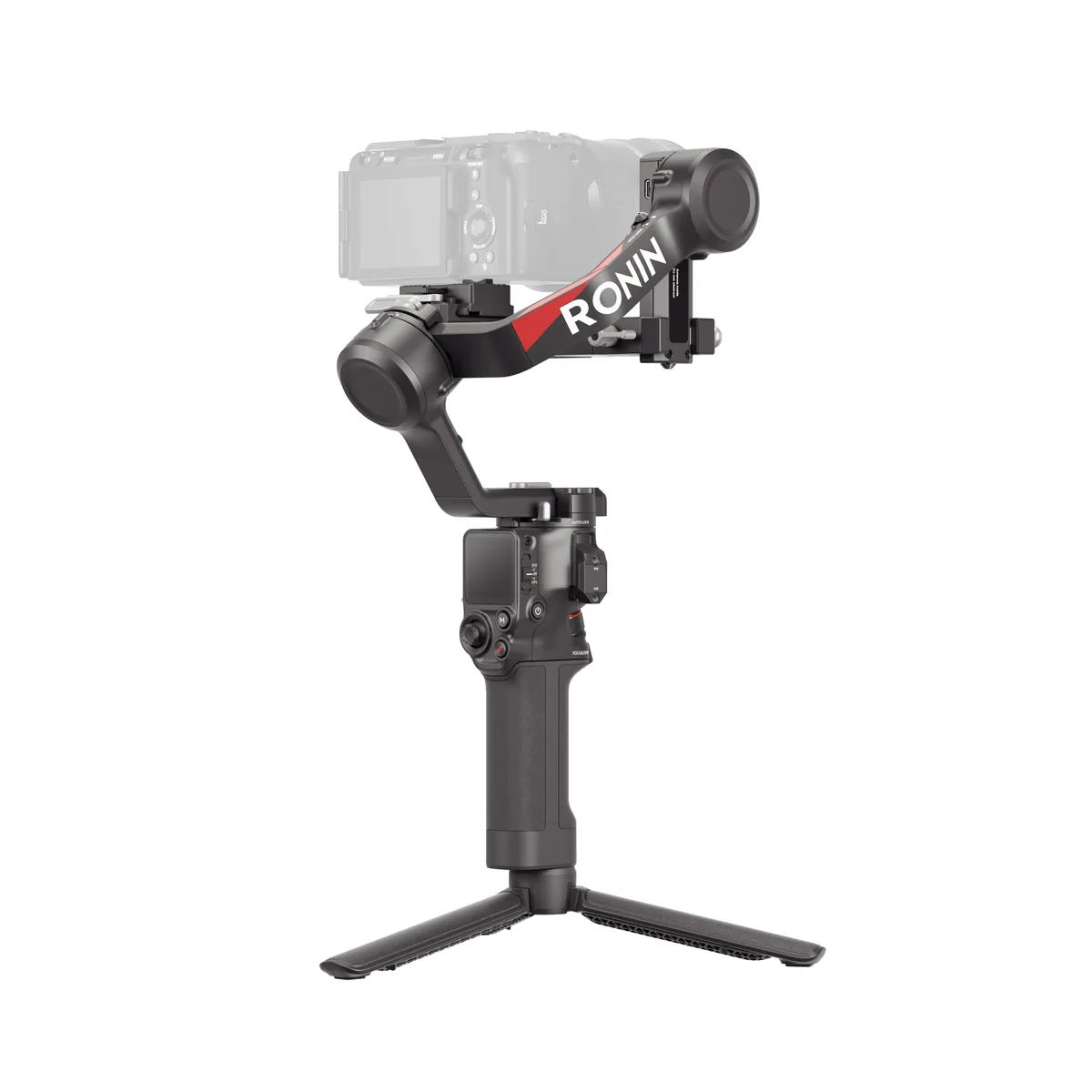

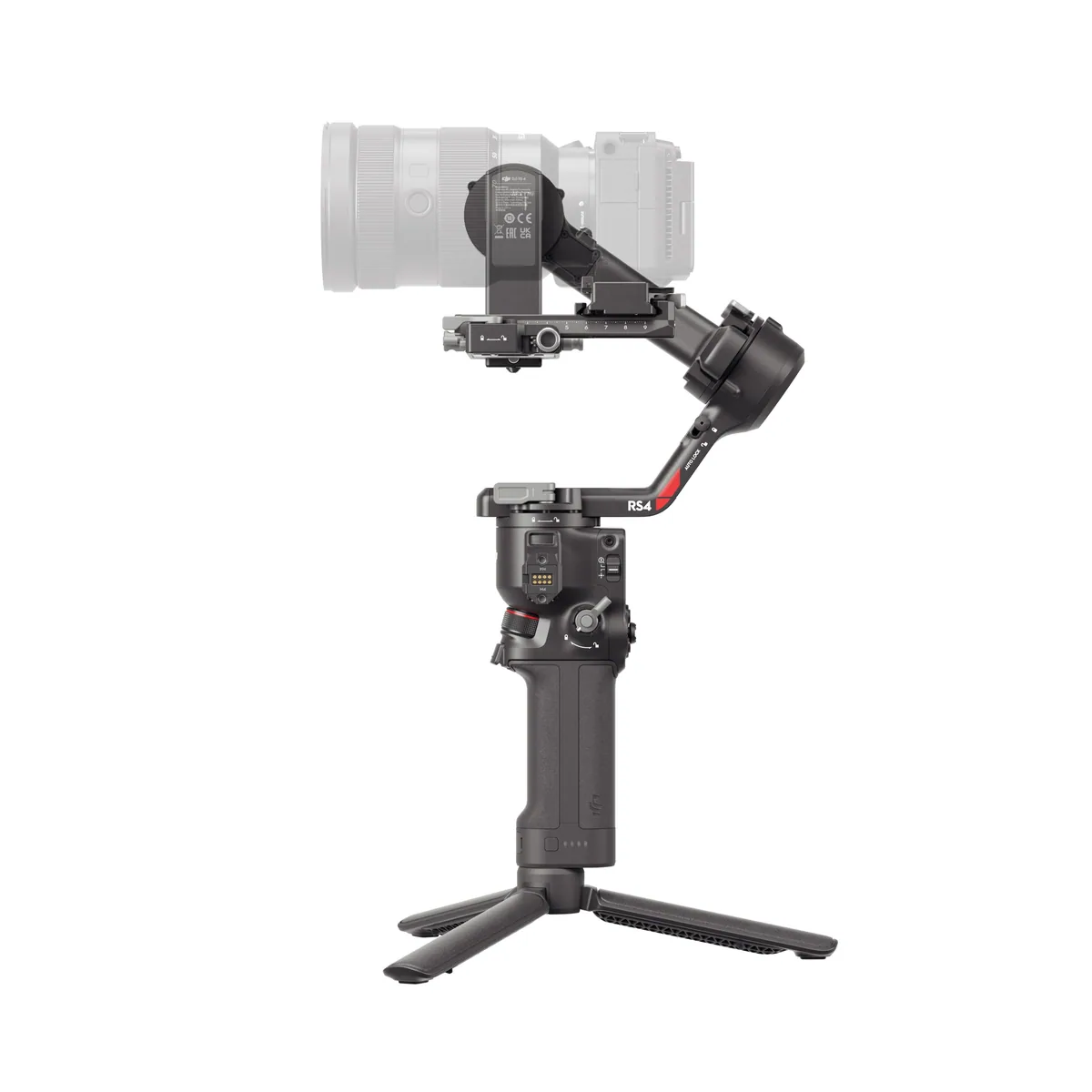

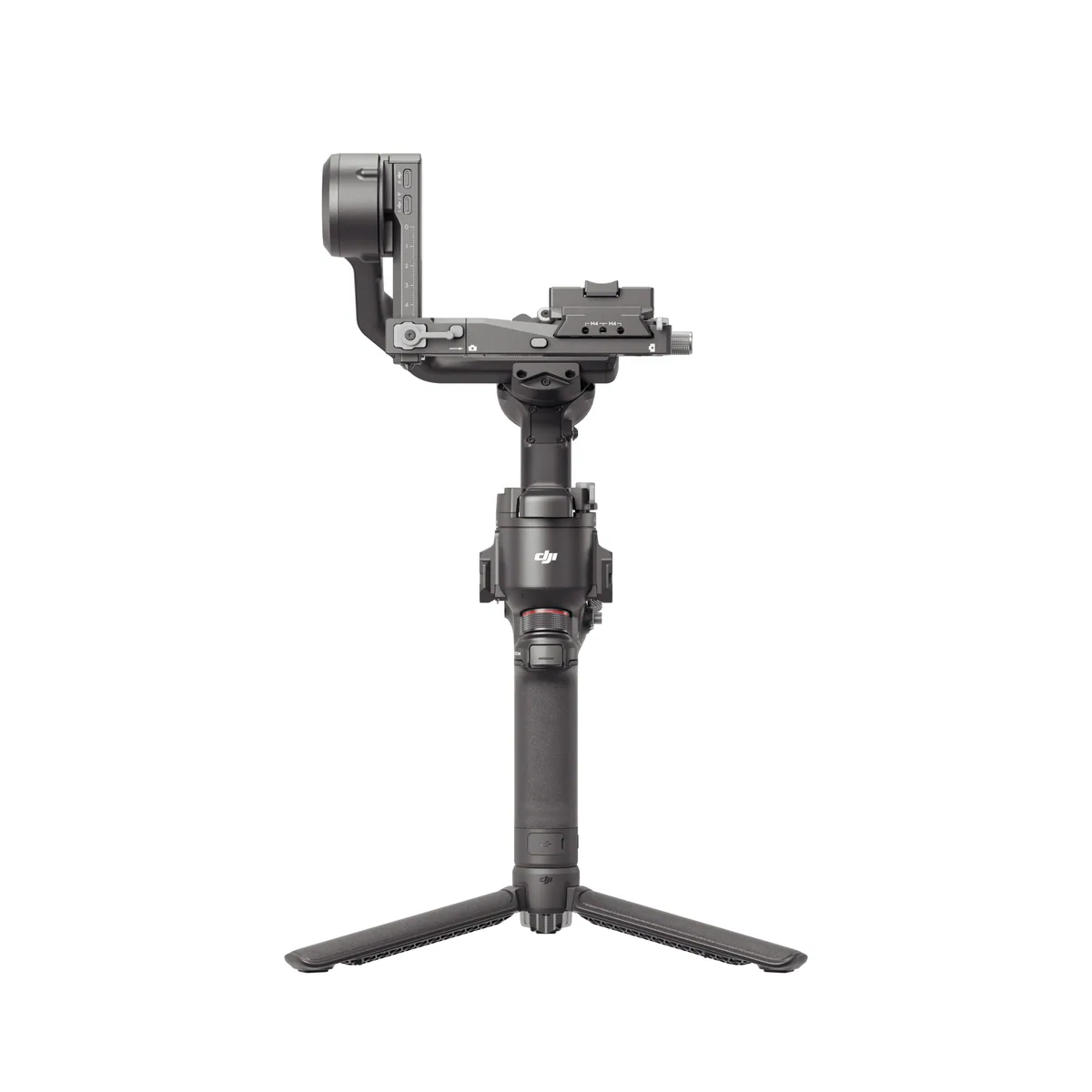

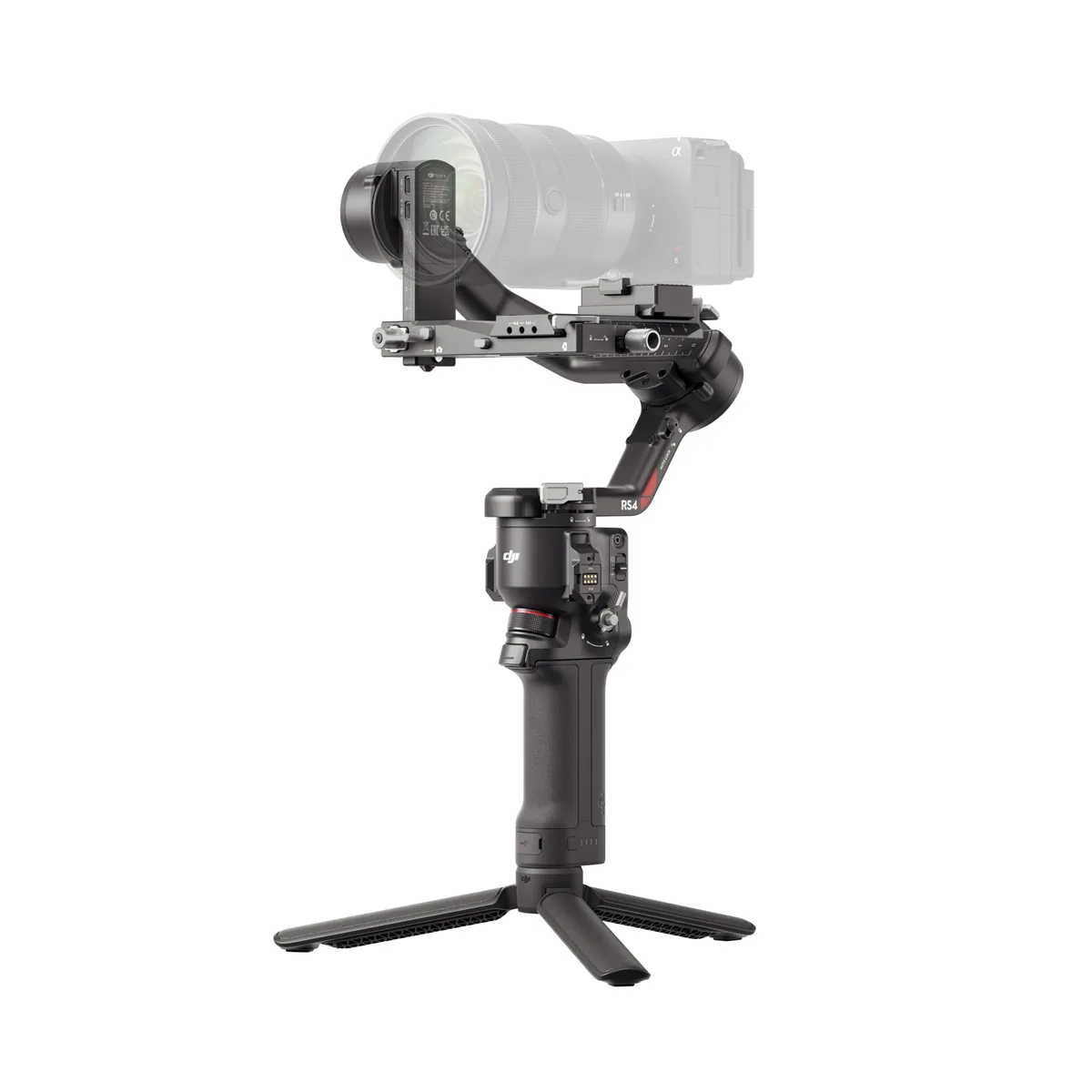

DJI RS 4 Gimbal Stabiliser
DJI RS 4 Gimbal Stabiliser
DJI RS 4 Gimbal Stabiliser
DJI RS 4 Gimbal Stabiliser
DJI RS 4 Gimbal Stabiliser
DJI RS 4 Gimbal Stabiliser
DJI

DJI RS 4 Gimbal Stabiliser

SKU
190021099760
Barcode
190021099760
  • 2nd-gen native vertical shooting
  • Teflon-coated axis arms
  • 3kg payload
  • Extended Tilt Axis

Overview

DJI RS 4 Gimbal Stabiliser by DJI, model 190021099760. Listed under Gimbal Stabilisers in our Video range.

Weight: Gimbal: Approx. 1066 g (2.35 lbs) Grip: Approx. 203 g (0.45 lbs) ‌ Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs) Upper and Lower Quick-Release Plates: Approx. 98 g (0.22 lbs).

Key features

  • 2nd-gen native vertical shooting
  • Teflon-coated axis arms
  • 3kg payload
  • Extended Tilt Axis
  • High-capacity battery grip

Specifications

Peripheral

Accessory PortRonin Series Accessories (RSA)/NATO Ports 1/4"-20 Mounting Hole ‌ Cold Shoe Video Transmission Port (USB-C) RSS Camera Control Port (USB-C) Focus Motor Port (USB-C)
BatteryModel: BHX711-3000-7.2‌‌V Type: LiPo 2S Capacity: 3000 mAh Energy: 21 Wh Max Runtime: 12 hours (Measured with the gimbal balanced in a level and stationary state. ‌When the gimbal is in motion, the operating time will be reduced.) Charging Time: Approx. 2.5 hours (Measured with a charger supporting 18W fast charging. It is recommended to use chargers supporting PD protocol.) Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
ConnectionsBluetooth 5.1 Charging Port (USB-C)
Ronin App RequirementsiOS 11.0 or above Android 8.0 or above
Languages Supported by the TouchscreenEnglish, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

Tested Payload3 kg (6.6 lbs)
Maximum Controlled Rotation SpeedPan: 360°/s Tilt: 360°/s Roll: 360°/s" Mechanical Range "Pan Axis: 360° continuous rotation Roll Axis: -95° to +240° Tilt Axis: -112° to +214°

Mechanical & Electrical Properties

Operating Frequency2.400-2.4835 GHz
Bluetooth Transmitter Power< 8 dBm
Operating Temperature-20° to 45° C (-4° to 113° F)
WeightGimbal: Approx. 1066 g (2.35 lbs) Grip: Approx. 203 g (0.45 lbs) ‌ Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs) Upper and Lower Quick-Release Plates: Approx. 98 g (0.22 lbs)
DimensionsFolded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod) Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)

DJI Ronin Image Transmitter

Expansion PortCold Shoe
Transmitter Power (EIRP)2.400-2.4835 GHz: < 25 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: < 25 dBm (FCC/SRRC) < 14 dBm (CE)
Transmission Range200 m (SRRC/FCC) 100 m (CE) ‌Measured in an unobstructed environment free of interference. "
Latency60 ms
Operating Current/Voltage900 mA/3.7 V

In the box

  • DJI RS 4 Gimbal Stabiliser
  • BG21 Battery Grip
  • Quick-Release Plate (Arca-Swiss/Manfrotto)
  • Extended Grip/Tripod (Plastic)
  • Lens-Fastening Support
  • Multi-Camera Control Cable (USB-C, 30 cm)
  • USB-C Charging Cable (40 cm)
  • DJI Logo Sticker
  • Screw Kit
