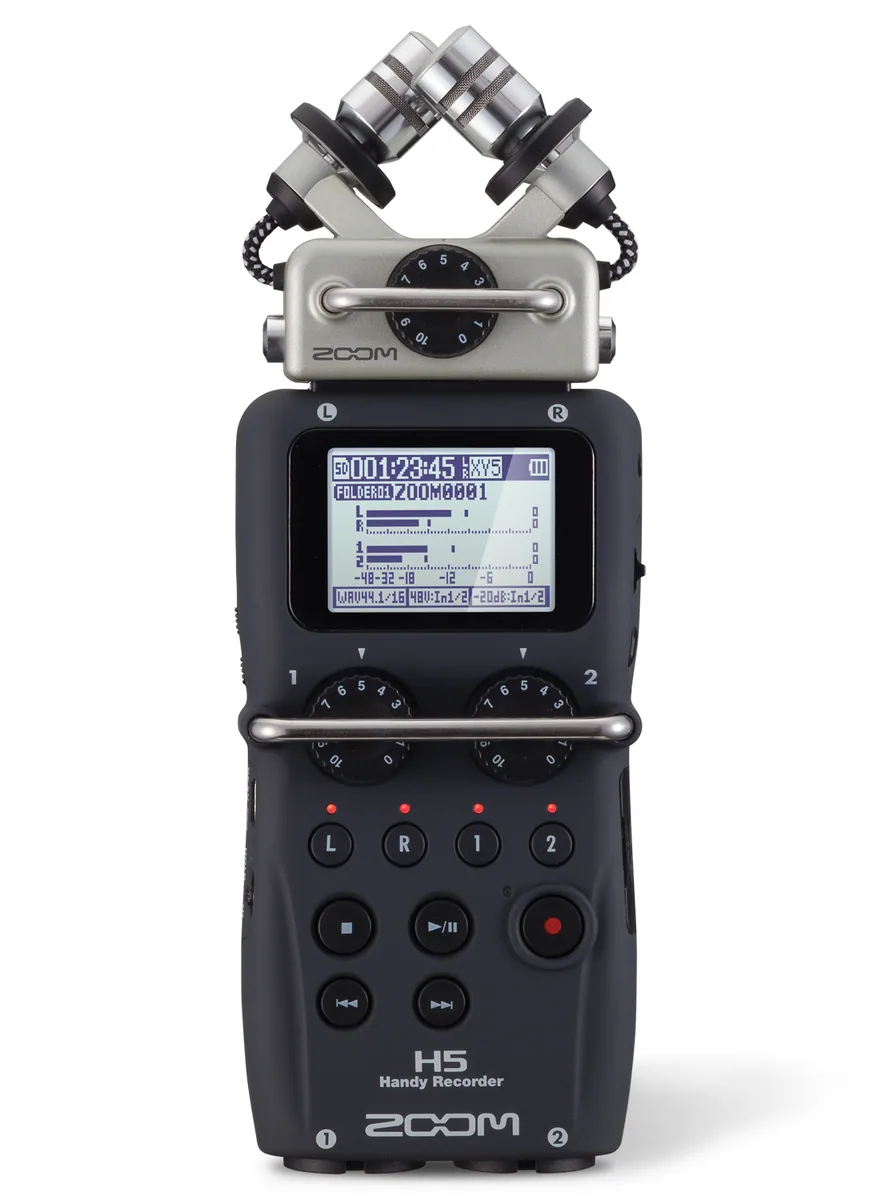

Zoom H5 Handy Recorder
Zoom

Zoom H5 Handy Recorder

SKU
H5
Barcode
4515260013241

Overview

Zoom H5 Handy Recorder by Zoom. Listed under Portable Digital Recorders in our Music & Audio range.

Weight: H5: 176.0 g XYH-5 X/Y mic: 94.0 g.

Buy the Zoom H5 Handy Recorder online

Order the Zoom H5 Handy Recorder online for €291.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Zoom H5 Handy Recorder online kopen met levering in Nederland en België.
  • Zoom H5 Handy Recorder online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Zoom H5 Handy Recorder en ligne avec livraison en France et en Belgique.
  • Compra Zoom H5 Handy Recorder online con entrega en España.
  • Compra Zoom H5 Handy Recorder online con consegna in Italia.
  • Kup Zoom H5 Handy Recorder online z dostawą do Polski.

Specifications

General

Recording MediaSD card: 16MB to 2GB SDHC card: 4GB to 32GB
DisplayBacklit LCD (128 x 64 pixels)
Power RequirementsAA size (LR6) battery x 2 AC adapter (AD-17 (DC5V/1A/USB-type, optional) USB bus power

I/O

InputsL/R [XYH-5 X/Y mic]: Mic Type: Unidirectional Sensitivity: -45 dB, 1 kHz at 1 Pa Input Gain: -∞ to 52 dB Max Sound Pressure Input: 140 dB SPL Mic/Line In: Connector: 1/8" stereo mini jack Input Gain: -∞ to 52 dB Input Impedance: 2 kΩ or more Plug-In Power: 2.5V supported Backup Recording: -12 dB lower than set L/R input gain Inputs 1/2: Connectors: XLR / TRS combo jacks (XLR: Pin 2 hot / TRS: Tip hot) Input Gain (PAD OFF): -∞ to 55.0 dB Input Gain (PAD ON): -∞ to 35.0 dB Input Impedance: 1.8 kΩ or more Max Input Level: +22 dBu (PAD ON) Phantom Power: +12V /+24V /+48V Equivalent Input Noise (EIN): -120 dBu or less
OutputsLine Out: Connector: 1/8" stereo mini jack Rated Output Level: -10 dBm Output Load Impedance: 10 kΩ or more Phone Out: Connector: 1/8" stereo mini jack Output Level: 20 W + 20 W into 32 Ω load Built-in speaker: 400 mw 8 Ω mono
USBMass Storage Class Operation: Class: USB 2.0 high speed Audio Interface Operation: Multitrack Mode: Class: USB 2.0 high speed Sampling Frequency: 44.1/48 kHz Bit Rate: 16-/24-bit Inputs / Outputs: 4 / 2 Stereo Mode: Class: USB 2.0 full speed Sampling Frequency: 44.1/48 kHz Bit Rate: 16-bit Inputs / Outputs: 2 / 2 USB Bus Powered Operation: Yes iPad Operation: Supported in stereo mode only

Recording

Recording FormatsStereo Mode: WAV (BWF-compliant) Sampling Frequency: 44.1/48/96 kHz Bit Rate: 16-/24-bit (Stereo) Maximum Simultaneous Recording Tracks: 2 MP3 Sampling Frequency: 44.1 kHz Bit Rate: 48/56/64/80/96/112/32/160/192/224/256/320 kbps Multi-Track Mode: WAV (BWF-compliant) Sampling Frequency: 44.1/48 kHz Bit Rate: 16-/24-bit (mono/stereo) Maximum Simultaneous Recording Tracks: 6 (L/R + INPUT 1/2 + L/R backup)

Physical Specifications

DimensionsH5: 66.8 x 135.2 x 42.1 mm XYH-5 X/Y mic: 65.5 x 62.2 x 41 mm
WeightH5: 176.0 g XYH-5 X/Y mic: 94.0 g

In the box

  • Zoom H5 Handy Recorder with Interchangeable Microphone System
  • XYH-5 Microphone Capsule
  • Plastic Case
  • Foam Windscreen
  • USB Cable
  • Steinberg WaveLab LE Software (Download)
  • Steinberg Cubase LE Software (Download)
  • Limited 1-Year Warranty
