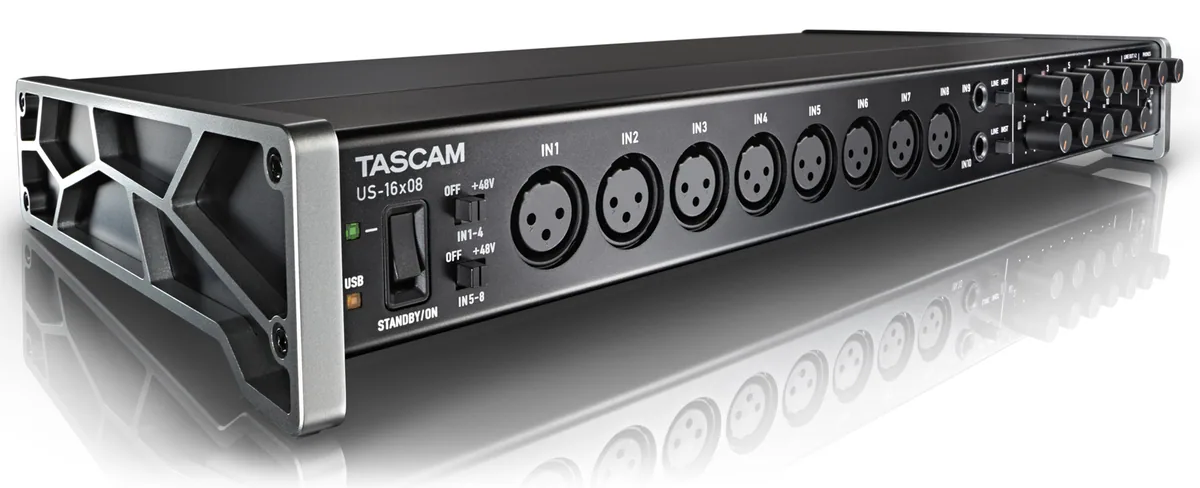

Tascam US-16×08 USB Audio/MIDI Interface
Tascam

Tascam US-16×08 USB Audio/MIDI Interface

SKU
US-16X08
Barcode
043774031177
  • 24-bit/96 kHz Resolution
  • 8x XLR Mic Inputs & 8x TRS Line Inputs
  • DSP Monitor Mixer with AEQ & Compression
  • Ultra-HDDA Microphone Preamps

Overview

Tascam US-16×08 USB Audio/MIDI Interface by Tascam. Listed under Audio Input & Output in our Music & Audio range.

Weight: 2.8 kg.

Key features

  • 24-bit/96 kHz Resolution
  • 8x XLR Mic Inputs & 8x TRS Line Inputs
  • DSP Monitor Mixer with AEQ & Compression
  • Ultra-HDDA Microphone Preamps
  • 5-Pin DIN MIDI I/O

Buy the Tascam US-16x08 USB Audio/MIDI Interface online

Order the Tascam US-16x08 USB Audio/MIDI Interface online for €577.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Tascam US-16x08 USB Audio/MIDI Interface online kopen met levering in Nederland en België.
  • Tascam US-16x08 USB Audio/MIDI Interface online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Tascam US-16x08 USB Audio/MIDI Interface en ligne avec livraison en France et en Belgique.
  • Compra Tascam US-16x08 USB Audio/MIDI Interface online con entrega en España.
  • Compra Tascam US-16x08 USB Audio/MIDI Interface online con consegna in Italia.
  • Kup Tascam US-16x08 USB Audio/MIDI Interface online z dostawą do Polski.

Specifications

Resolution

Sampling Frequency44.1, 48, 88.2, 96 kHz
Bit Rate16/24-bit

Analogue Audio Inputs

Microphone InputConnector: XLR-3-31(1: ground, 2: hot, 3: cold ), balanced Input Impedance: 2.4 kOhms Nominal Input Level, Max Gain: -68 dBu (0.0003 Vrms) Nominal Input Level, Minimum Gain: -12 dBu (0.195 Vrms) Maximum Input Level: +8 dBu (1.947 Vrms) Gain: 56 dB
Instrument InputConnector: 1/4" (6.3 mm) TS-jack (T: hot, S: ground), unbalanced (When set to "INST" at LINE/INST switch) Input Impedance: 1 MOhms or more Nominal Input Level, Max Gain: -41 dBu (0.0069 Vrms) Nominal Input Level, Minimum Gain: +4 dBu (1.228 Vrms) Maximum Input Level: +24 dBu (12.182 Vrms) Gain: 45 dB
Line InputSet to -10 dBV at Level Switch: Connector: 1/4" (6.3 mm) TS-jack (T: hot, S: ground), balanced Input Impedance: 10 kOhms or more Nominal Input Level, Max Gain: -41 dBu (0.0069 Vrms) Nominal Input Level, Minimum Gain: +4 dBu (1.228 Vrms) Maximum Input Level: +24 dBu (12.182 Vrms) Gain: 45 dB Set to +4 dBu at Level Switch: Connector: 1/4" (6.3 mm) TS-jack (T: hot, S: ground), unbalanced Input Impedance: 10 kOhms or more Nominal Input Level: +4 dBu (1.228 Vrms) Maximum Input Level: +24 dBu (12.182 Vrms)

Analogue Audio Outputs

Line OutputConnector: 1/4" (6.3 mm) TS-jack (T: hot, S: ground), balanced Output Impedance: 100 ohms Nominal Output Level: +4 dBu (1.228 Vrms) Maximum Output Level: +24 dBu (12.177 Vrms)
HeadphonesConnector: 1/4" (6.3 mm) stereo phone jack Maximum Output Level: 70 mW +70 mW or more (THD+N 0.1% or less, 32 ohms loaded)

MIDI

Connector5-pin DIN
FormatStandard MIDI format

Power

PowerDedicated AC adapter
Power Consumption12 W

Audio

Frequency ResponseLine Output (Balanced): 44.1/48 kHz: 20 Hz to 20 kHz, +/-0.3 dB (JEITA) 88.2/96 kHz: 20 Hz to 40 kHz, +/-0.3 dB(JEITA)
THD0.008 % or less
S/N Ratio100 dB or more
Crosstalk100 dB or more
EIN-125 dBu or less

System Requirements

WindowsOS: Windows 7 (32-bit SP1, 64-bit SP1), Windows 8.0 (32-bit, 64-bit), Windows 8.1 (32-bit, 64-bit) Computer Compatibility: Windows compatible computer with a USB 2.0 port CPU Type/Speed: Dual core/2 GHz or faster Memory: 2 GB or more Driver: ASIO 2.0, WDM (MME)
MacOS: OS X 10.9, OS X 10.9 Compatible Computers: Apple Mac with USB 2.0 port CPU Type/Speed: Dual core/2 GHz or faster Memory: 2 GB or more Driver: Core Audio, Core MIDI
iOSiOS 7

General

Operating Temperature5 to 35°C
Dimensions (W x H x D)445 x 59 x 219 mm
Weight2.8 kg

In the box

  • Tascam US-16x08 USB Audio/MIDI Interface
  • Rack Mount Adapter
  • USB Cable
  • AC Adapter
