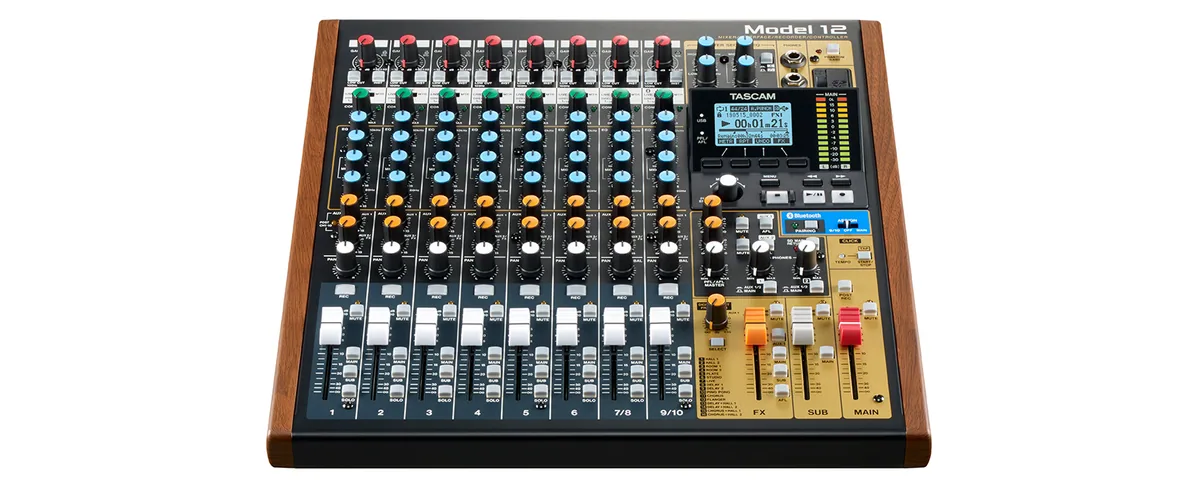

Tascam Model 12 Digital Mixer
Tascam

Tascam Model 12 Digital Mixer

SKU
MODEL 12
Barcode
043774034499
  • MIDI I/O, Metronome, and Click Output
  • 10 x Input Channels
  • 8 x Microphone Preamps
  • 10 x Line Inputs (6 Mono + 2 Stereo)

Overview

Tascam Model 12 Digital Mixer by Tascam. Listed under Digital Mixers in our Music & Audio range.

Weight: Not Specified by Manufacturer.

Key features

  • MIDI I/O, Metronome, and Click Output
  • 10 x Input Channels
  • 8 x Microphone Preamps
  • 10 x Line Inputs (6 Mono + 2 Stereo)
  • Single-Knob Compressor

Buy the Tascam Model 12 Digital Mixer online

Order the Tascam Model 12 Digital Mixer online for €720.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Tascam Model 12 Digital Mixer online kopen met levering in Nederland en België.
  • Tascam Model 12 Digital Mixer online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Tascam Model 12 Digital Mixer en ligne avec livraison en France et en Belgique.
  • Compra Tascam Model 12 Digital Mixer online con entrega en España.
  • Compra Tascam Model 12 Digital Mixer online con consegna in Italia.
  • Kup Tascam Model 12 Digital Mixer online z dostawą do Polski.

Specifications

Operating System

Windows OSWindows 10 (May 2019 Update), Windows 8.1, Windows 7
Mac OSmacOS Catalina, macOS Mojave, macOS High Sierra (10.13), macOS Sierra‎ (10.12), OS X El Capitan (10.11)

System Requirements

CPUDual Core / 2 GHz or Faster
Memory2 GB or More
DriverWindows: USB Audio Class 2.0, ASIO2.0, WDM (MME) Mac: Core Audio
Screen1280 × 800

Audio Performance

Residual Output NoiseMain Output: -100 dBu (Main Fader at Min)
EINMono Input Channel: 127 dBu (Rs: 150 Ohms, Gain Knob: Max)
THDMic In to Main Out: 0.01% or Less (Max Input Level, +10 dBu, 1 kHz, Gain Min.) Mic In to Main Out: 0.004% or Less (Nominal Input Level, +4 dBu, 1 kHz, Gain Min.)
Frequency ResponseAnalogue: 20 Hz to 30 kHz (+0.5/-1 dB) Digital: 20 Hz to 20 kHz (+0.5/-1 dB)
CrosstalkChanne / Input and Output: -80 dB (1 kHz, Pan Fully Counter Clockwise / Fully Clockwise)
Maximum GainMic - Main Out: 74 dB Mic - Insert Out: 50 dB Mic - Sub Out: 74 dB Mic - CR Out: 79 dB Mic - Monitor Out: 75 dB Mic - FX Out: 75 dB USB/SD - Main Out: 24 dB (AEQ Flatten, Pan Fully Counter Clockwise / Fully Clockwise)

Recording Specifications

RecordingSupported Media: SD: 512 MB to 2 GB SDHC: 4 GB to 32 GB SDXC: 64 GB to 512 GB Class 10 or Higher Required File System: SD Card: FAT16 SDHC Card: FAT32 SDXC Card: exFAT Recording File Format: WAV (BWF) Playback Format: WAV (BWF) Sampling Frequency: 44.1/48 kHz Bit Depth: 16-/24-Bit Recordable Channels: Maximum 12 Channels (10 Channel + 2 Stereo Mix)

Analogue Audio Inputs

Mic InputMic In: Channel 1 to 6, 7/8 to 9/10 Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD) Maximum Input Level: +10 dBu Nominal Input Level: -8 dBu Minimum Input Level: -58 dBu Gain Adjustable Range: 0 to 50 dB Input Impedance: 1.8 Kilohms Phantom Power Supply: +48V
Line InputLine In: Channels 1-6, 7/8, 9/10 Connector: 1/4" / 6.35 mm TRS Phone Jack (Balanced) Maximum Input Level: +22 dBu Nominal Input Level: +4 dBu Input Impedance: 22 Kilohms Gain Adjustable Range: Channels 1 to 6: -10 to +40 dB Channels 7/8 and 9/10: -20 to +30 dB
Instrument InputInstrument In: Channels 1-6, 7, 9 Connector: 1/4" / 6.35 mm TRS Phone jack (T: HOT, R: GND, S: GND, Unbalanced) Maximum Input Level: +22 dBu Nominal Input Level: +4 dBu Gain Adjustable Range: -10 to +40 dB Input Impedance: 1 Megohm
InsertInsert: Channels 1 & 2 Connector: 1/4" / 6.35 mm TRS Phone Jack (T: Send, R: Return, S: GND) Return (Ring) Maximum Input Level: +18 dBu Nominal Input Level: 0 dBu Input Impedance: 10 Kilohms Send (Tip) Maximum Output Level: +18 dBu Nominal Output Level: 0 dBu Output Impedance: 100 Ohms
Stereo InputConnector: 1/8" / 3.5 mm Stereo Mini Jack (Unbalanced) Maximum Input Level: +8 dBV Nominal Input Level: -10 dBV Input Impedance: 10 Kilohms

Analogue Outputs

Main OutputConnector: XLR 3-32 (1: GND, 2: HOT, 3: COLD) Maximum Output Level: +22 dBu Nominal Output Level: +4 dBu Output Impedance: 100 Ohms
Other OutputsSub Out (L/R), Aux Out (1/2), Click (Mono) Connector: 1/4" / 6.35 mm TRS Phone Jack (T: HOT, R: COLD, S: GND) Maximum Output Level: +16 dBu Nominal Output Level: -2 dBu Output Impedance: 100 Ohms
PhonesHeadphones Out: 1 and 2 Connector: 1/4" / 6.35 mm Stereo Phone Jack Output Level: 80 mW + 80 mW (32 Ohms Loaded)

Remote

Footswitch1/4" / 6.35 mm TS Phone Jack

USB

USBConnector: Type-C Format: USB 2.0 High-Speed, Mass Storage Class/USB Audio Class Sampling Rate: 44.1/ 48 kHz Bit Depth: 16-/24-Bit Maximum Input and Output: 12 Inputs / 10 Outputs

Bluetooth Specifications

BluetoothOutput Class: Class 2 Transmission Range: Approximately 33' / 10 m (Transmission Range May Vary, Depending on Surroundings) Bluetooth Version: 5.0 Supported Profile: A2DP, AVRCP 1.0 Supported A2DP Codecs: SBC, AAC A2DP Content Protection: SCMS-T

Equaliser

Channel AEQLow-Cut: 100 Hz, -18 dB/Octave Hi-Shelving: +15 dB/-15 dB, Cut Off Frequency: 10 kHz Mid (Peaking): +15 dB/-15 dB, 100 Hz to 8 kHz Variable MID-Band Q Fix: 0.55 Low-Shelving: +15 dB/-15 dB, Cut Off Frequency: 80 Hz
Master SectionHi-Shelving: +15 dB/-15 dB, Cut Off Frequency: 10 kHz Low-Shelving: +15 dB/-15 dB, Cut Off Frequency: 60 Hz

Effects

Effect TypesSmall Hall Large Hall Small Room Large Room Plate Studio Live Short Delay Delay Ping-Pong Chorus Flanger Delay + Small Hall Delay + Large Hall Chorus + Small Hall Chorus + Large Hall

MIDI

MIDI I/O2 x 5-Pin DIN Connectors Can Sync with Other External MIDI Devices (Drum Machines, Synthesisers, Hardware Sequencers)

Power Specifications

PowerPower Adapter: 15 VDC Centre Pin Positive

Physical

Operating Temperature41 to 95°F / 5 to 35°C
DimensionsNot Specified by Manufacturer
WeightNot Specified by Manufacturer

In the box

  • Tascam Model 12 Integrated Production Suite Mixer/Recorder/USB Interface
  • Power Supply
