Sennheiser

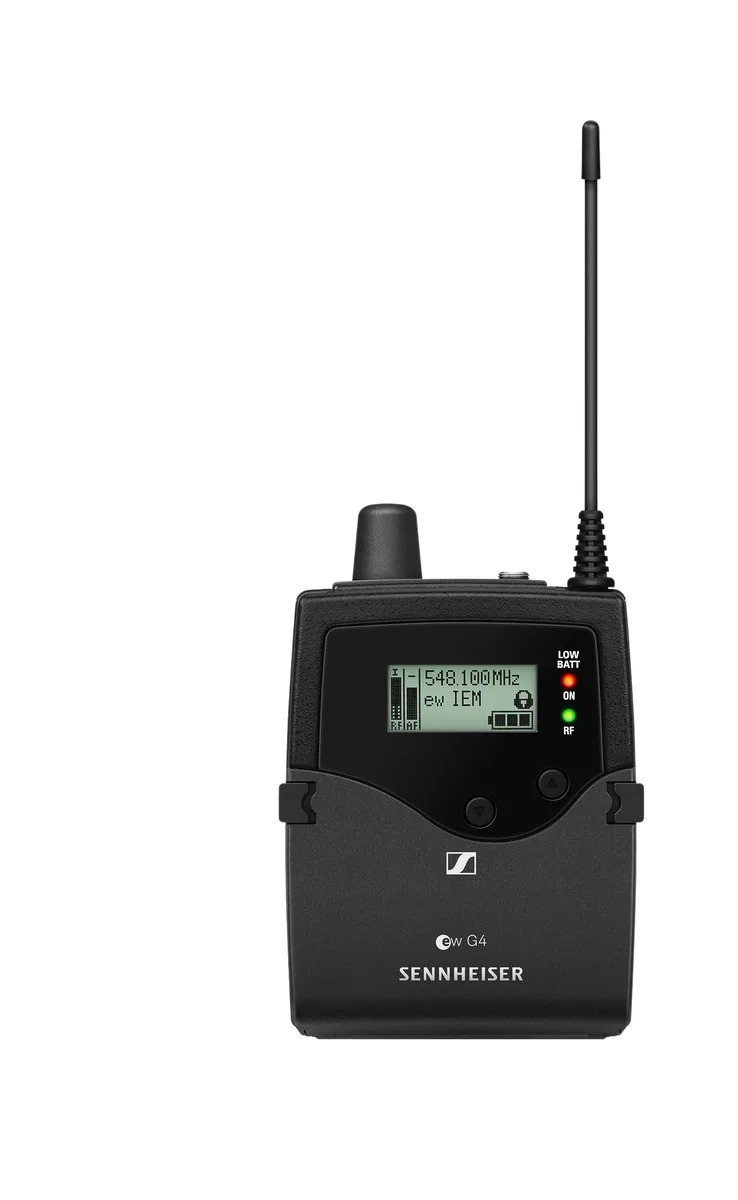

Sennheiser EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (B: 626 – 668 MHz)
- SKU
- 509624
- Model
- EK IEM G4
- Barcode
- 615104311787
- B Band (626 to 668 MHz)
- EK IEM G4 Stereo Bodypack Receiver
- 1 x Pair of IE 4 Earphones
- Up to 16 Compatible Channels
Overview
Sennheiser EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (B: 626 – 668 MHz) by Sennheiser. Listed under Receivers & Transmitters in our Music & Audio range.
Weight: 125 g.
Key features
- B Band (626 to 668 MHz)
- EK IEM G4 Stereo Bodypack Receiver
- 1 x Pair of IE 4 Earphones
- Up to 16 Compatible Channels
- 42 MHz Bandwidth
Warranty: 2 year manufacturer warranty.
Buy the Sennheiser EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (B: 626 - 668 MHz) online
Order the Sennheiser EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (B: 626 - 668 MHz) online for €652.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.
- Sennheiser EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (B: 626 - 668 MHz) online kopen met levering in Nederland en België.
- Sennheiser EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (B: 626 - 668 MHz) online kaufen mit Lieferung nach Deutschland und Österreich.
- Achetez Sennheiser EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (B: 626 - 668 MHz) en ligne avec livraison en France et en Belgique.
- Compra Sennheiser EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (B: 626 - 668 MHz) online con entrega en España.
- Compra Sennheiser EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (B: 626 - 668 MHz) online con consegna in Italia.
- Kup Sennheiser EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (B: 626 - 668 MHz) online z dostawą do Polski.
Specifications
Receiver
| Frequency Band | B: 626 to 668 MHz |
|---|---|
| Receiving Frequency | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels |
| Switching Bandwidth | Up to 42 MHz |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| Receiver Type | Adaptive diversity |
| Sensitivity | < 4 μV, typ. 1.6 μV for 52 dBA (with HDX, peak deviation) rms s/n |
| Adjacent Channel Selectivity | Typically ≥ 65 dB |
| Intermodulation Attenuation | Typically ≥ 70 dB |
| Blocking | ≥ 80 dB |
| Pilot Tone | Squelch: Can be switched off |
| Squelch | 5 to 25 dBµV, adjustable in steps of 2 dB |
| Compander | Sennheiser HDX |
| Signal to Noise Ratio | Approximately 90 dBA (1 mV, peak deviation) |
| Total Harmonic Distortion (THD) | ≤ 0.9 % |
| Audio Output Power | 2 x 100 mW at 32 Ohms (@ 2.4 V, 5 % THD, nominal deviation) |
| Quality Setting Range | +8 dB at 80 kHz |
| Limiter | -18 dB to -6 dB, adjustable in steps of 6 dB, can be switched off |
| Temperature Range | 14 to 131°F / -10 to 55°C |
| Power Supply | 2 x AA batteries, 1.5 V or BA 2015 accupack |
| Current Consumption | At Nominal Voltage: Approximately 140 mA With Transmitter Switched Off: ≤ 25 µA |
| Operating Time | Approximately 4 to 6 hours (depending on volume level) |
| Dimensions (W x L x H) | 82 x 64 x 24 mm |
| Weight | 125 g |
In the box
- Sennheiser EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (B: 626 to 668 MHz)
- 2 x AA Batteries
- IE 4 In-Ear Stereo Earphones for Wireless Monitor Applications
