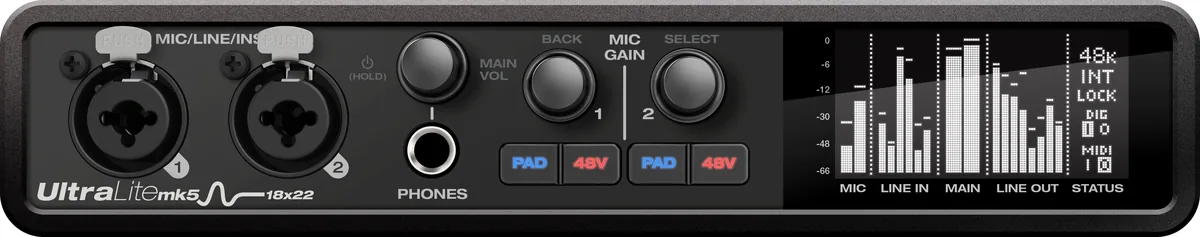

MOTU UltraLite-mk5 Desktop 18×22 USB Type-C Audio/MIDI Interface
Motu

MOTU UltraLite-mk5 Desktop 18×22 USB Type-C Audio/MIDI Interface

SKU
UltraMK5
Model
MOTU_ULMK5
Barcode
839128006188
  • Musicians, Podcasters, and Producers
  • USB Type-C Connectivity
  • 2 Mic/Line/Instrument Preamps, 6 Line In
  • 1 Headphone Out, 10 1/4" Line Outs

Overview

MOTU UltraLite-mk5 Desktop 18×22 USB Type-C Audio/MIDI Interface by Motu, model MOTU_ULMK5. Listed under MIDI Interfaces in our Music & Audio range.

Weight: 1.3 kg.

Key features

  • Musicians, Podcasters, and Producers
  • USB Type-C Connectivity
  • 2 Mic/Line/Instrument Preamps, 6 Line In
  • 1 Headphone Out, 10 1/4″ Line Outs
  • High-Performance 24-Bit / 192 kHz AD/DA

Buy the MOTU UltraLite-mk5 Desktop 18x22 USB Type-C Audio/MIDI Interface online

Order the MOTU UltraLite-mk5 Desktop 18x22 USB Type-C Audio/MIDI Interface online for €897.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • MOTU UltraLite-mk5 Desktop 18x22 USB Type-C Audio/MIDI Interface online kopen met levering in Nederland en België.
  • MOTU UltraLite-mk5 Desktop 18x22 USB Type-C Audio/MIDI Interface online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez MOTU UltraLite-mk5 Desktop 18x22 USB Type-C Audio/MIDI Interface en ligne avec livraison en France et en Belgique.
  • Compra MOTU UltraLite-mk5 Desktop 18x22 USB Type-C Audio/MIDI Interface online con entrega en España.
  • Compra MOTU UltraLite-mk5 Desktop 18x22 USB Type-C Audio/MIDI Interface online con consegna in Italia.
  • Kup MOTU UltraLite-mk5 Desktop 18x22 USB Type-C Audio/MIDI Interface online z dostawą do Polski.

Specifications

Form FactorTabletop
Display1 x Monochrome OLED
Channels of I/OAnalogue: 8 Inputs / 12 Outputs Digital: 10 Inputs / 10 Outputs
Max Sample Rate/Resolution192 kHz / 24-Bit
Number of Mic Preamps2
Input Level Adjustment2 x Knob
Expansion SlotsNone
PadMic: -20 dB (Switchable per Channel)
Gain/Trim RangeMic Inputs: Up to +74 dB
High-Pass FilterNone
Solo/MuteNone

Connectivity

Analogue Audio I/O2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel) 6 x 1/4" TRS Balanced Line Input 10 x 1/4" TRS Balanced Line Output (DC-Coupled) 1 x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Phantom Power48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O1 x TOSLINK Optical ADAT / S/PDIF Input 1 x TOSLINK Optical ADAT / S/PDIF Output 1 x RCA Coaxial S/PDIF Input 1 x RCA Coaxial S/PDIF Output
Host Connection / USB1 x USB Type-C (Class-Compliant USB 2.0)
USB (Non-Host)None
Sync I/ONone
Network I/ONone
MIDI I/O1 x DIN 5-Pin Input 1 x DIN 5-Pin Output
Wireless ConnectivityNone

Performance

Max Output LevelHeadphone Outputs: +14 dBu
ImpedanceLine/Hi-Z Inputs: 1 Megohm
Dynamic RangeMic Inputs: 115 dB (A-Weighted) Line Inputs: 120 dB (A-Weighted) Line Outputs: 125 dB (A-Weighted) Headphone Outputs: 118 dB (A-Weighted)
THD+NLine Inputs: -114 dB / 0.0002% (Unweighted) Line Outputs: -114 dB / 0.0002% (Unweighted) Headphone Outputs: -110 dB / 0.0003% (Unweighted)
EINMic Inputs: -129 dBu

Digital Audio

Sample Rates44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate ConversionNone
Bit Depths24-Bit
Latency2.4 ms at 96 kHz (Dependant on Buffer Size, Input to Output)
Sync SourcesADAT, Internal, S/PDIF
Memory Card SlotNone

Compatibility

OS CompatibilitymacOS 10.11 or Later Windows 10 iOS 9 or Later
Included SoftwareDigital Performer Lite
Compatible Software (Not Included)Any Core Audio (Mac) Compliant Software
Included Plug-InsNone
Supported Drivers/API & Plug-InsmacOS Class-Compliant (No Driver Needed) Windows Driver Downloadable from Manufacturer
Processor RequirementMac: Intel Core i3 or Better PC: Intel Core i3 or Better AMD
RAM Requirements4 GB, 8 GB Recommended
Storage Requirements500 GB
Mobile Device CompatibilityiPad iPhone iPod Touch
Required HardwareAvailable USB 2.0 Port
Internet ConnectionRequired for Registration, Software/Driver Download

Power

Power RequirementsAC/DC Power Adapter (Included)
AC/DC Power Adapter12 to 18 VDC at 1 A, Centre-Positive or Negative (Included)

Physical

Rackmount Size1 RU (with Optional Hardware, 1/2-Rack)
Dimensions21.8 x 17.5 x 4.45 cm
Weight1.3 kg

In the box

  • MOTU UltraLite-mk5 Desktop 18x22 USB Type-C Audio/MIDI Interface
  • External Power Supply
  • CueMix 5 Software (Download)
  • MOTU Performer Lite (Download)
  • 6GB of Loops and Sounds from Big Fish Audio, LucidSamples, Loopmasters, and MOTU (Download)
