LD Systems U306 IEM In-Ear Monitoring-System
LD Systems U306 IEM In-Ear Monitoring-System
LD Systems U306 IEM In-Ear Monitoring-System
LD Systems U306 IEM In-Ear Monitoring-System
LD Systems U306 IEM In-Ear Monitoring-System
LD Systems U306 IEM In-Ear Monitoring-System
LD Systems

LD Systems U306 IEM In-Ear Monitoring-System

SKU
LDU306IEMHPINT
Barcode
4049521445170
  • Reliable wireless transmission range of up to 100 m
  • Low-reaching frequency response
  • 12 selectable channels
  • Choice of stereo or mono mode

Overview

LD Systems U306 IEM In-Ear Monitoring-System by LD Systems, model LDU306IEMHPINT. Listed under Wireless Systems in our Music & Audio range.

Weight: 0.66 kg.

Key features

  • Reliable wireless transmission range of up to 100 m
  • Low-reaching frequency response
  • 12 selectable channels
  • Choice of stereo or mono mode
  • Up to 6 systems can be used simultaneously
  • 10-hour bodypack operating time with two AA batteries

Buy the LD Systems U306 IEM In-Ear Monitoring-System online

Order the LD Systems U306 IEM In-Ear Monitoring-System online for €271.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • LD Systems U306 IEM In-Ear Monitoring-System online kopen met levering in Nederland en België.
  • LD Systems U306 IEM In-Ear Monitoring-System online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez LD Systems U306 IEM In-Ear Monitoring-System en ligne avec livraison en France et en Belgique.
  • Compra LD Systems U306 IEM In-Ear Monitoring-System online con entrega en España.
  • Compra LD Systems U306 IEM In-Ear Monitoring-System online con consegna in Italia.
  • Kup LD Systems U306 IEM In-Ear Monitoring-System online z dostawą do Polski.

Specifications

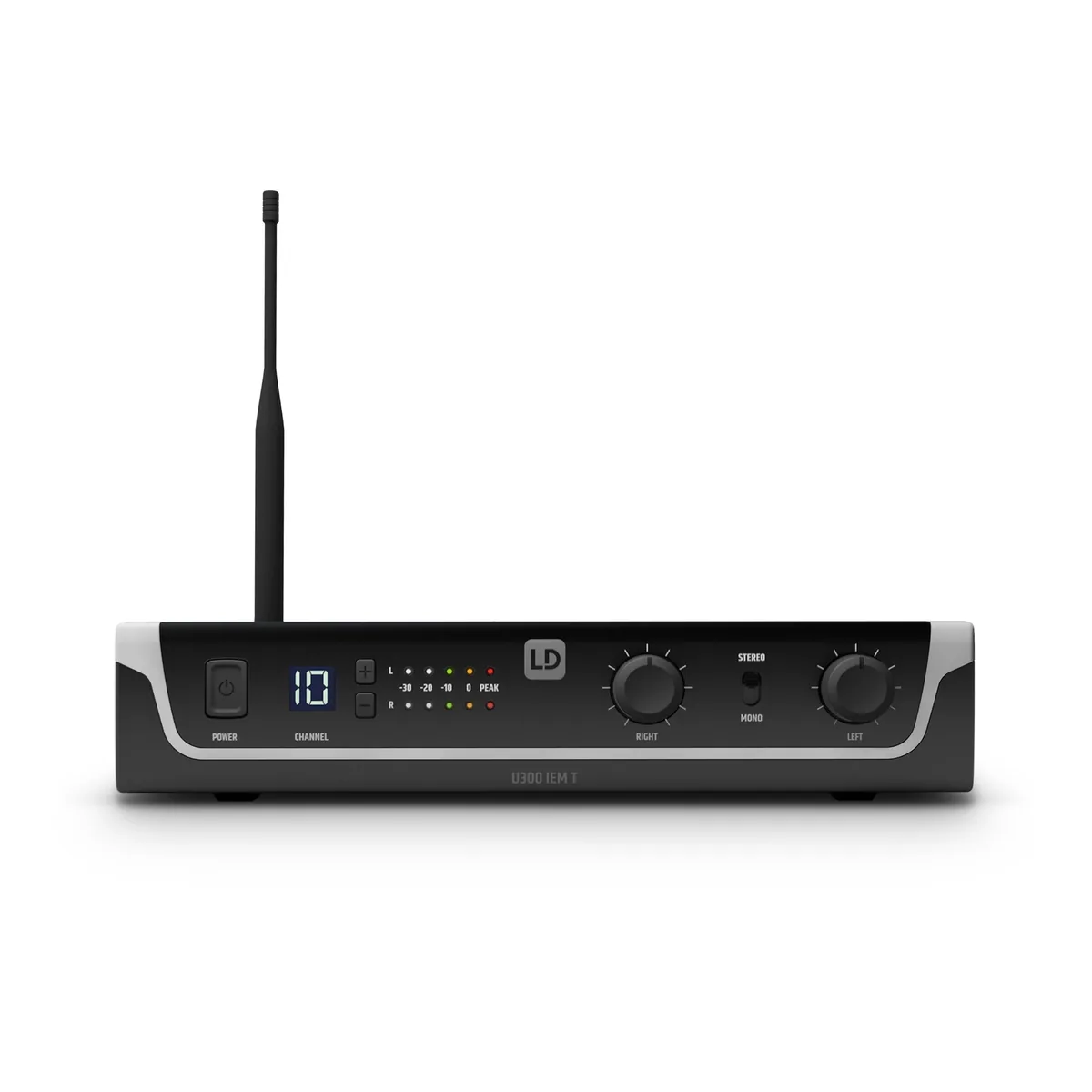

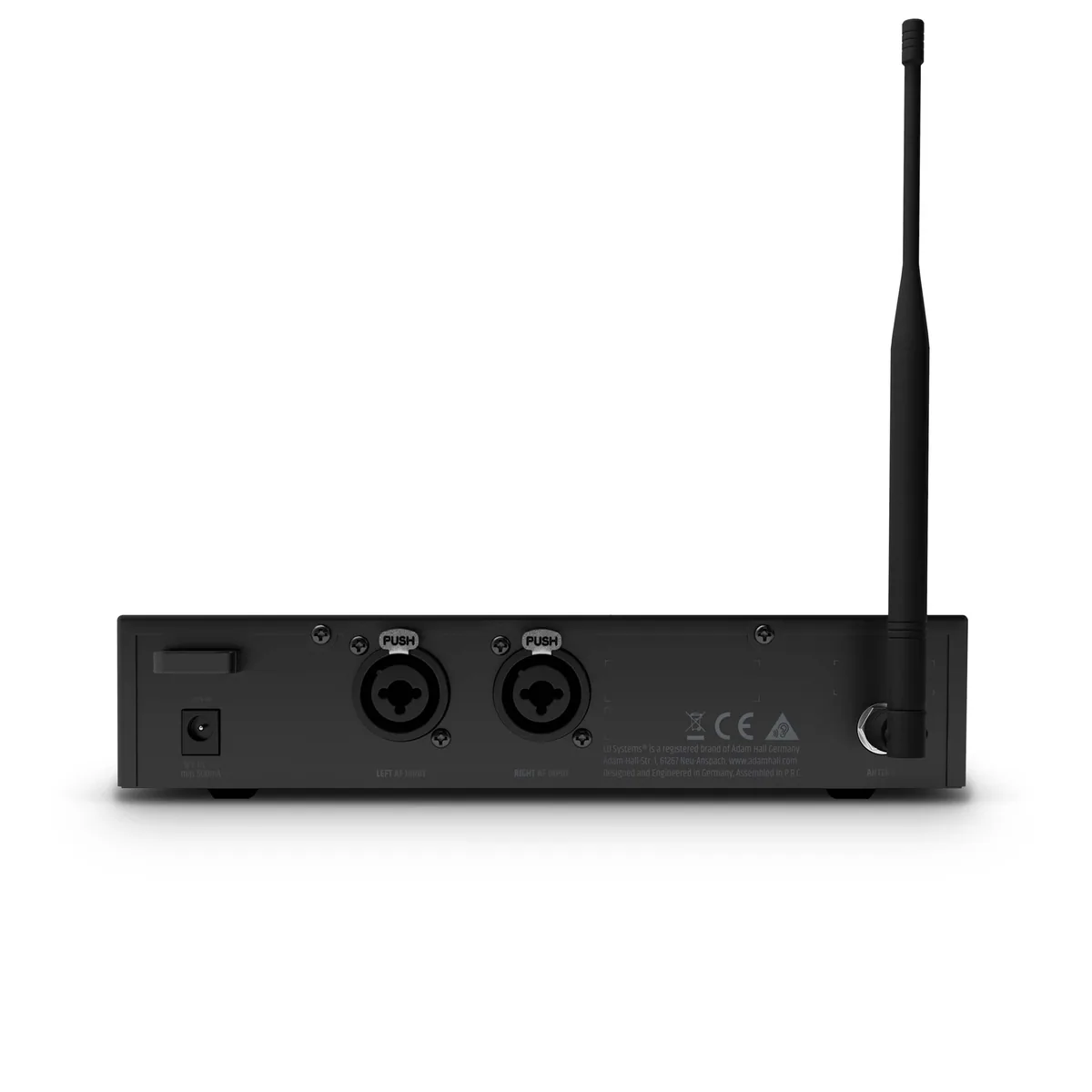

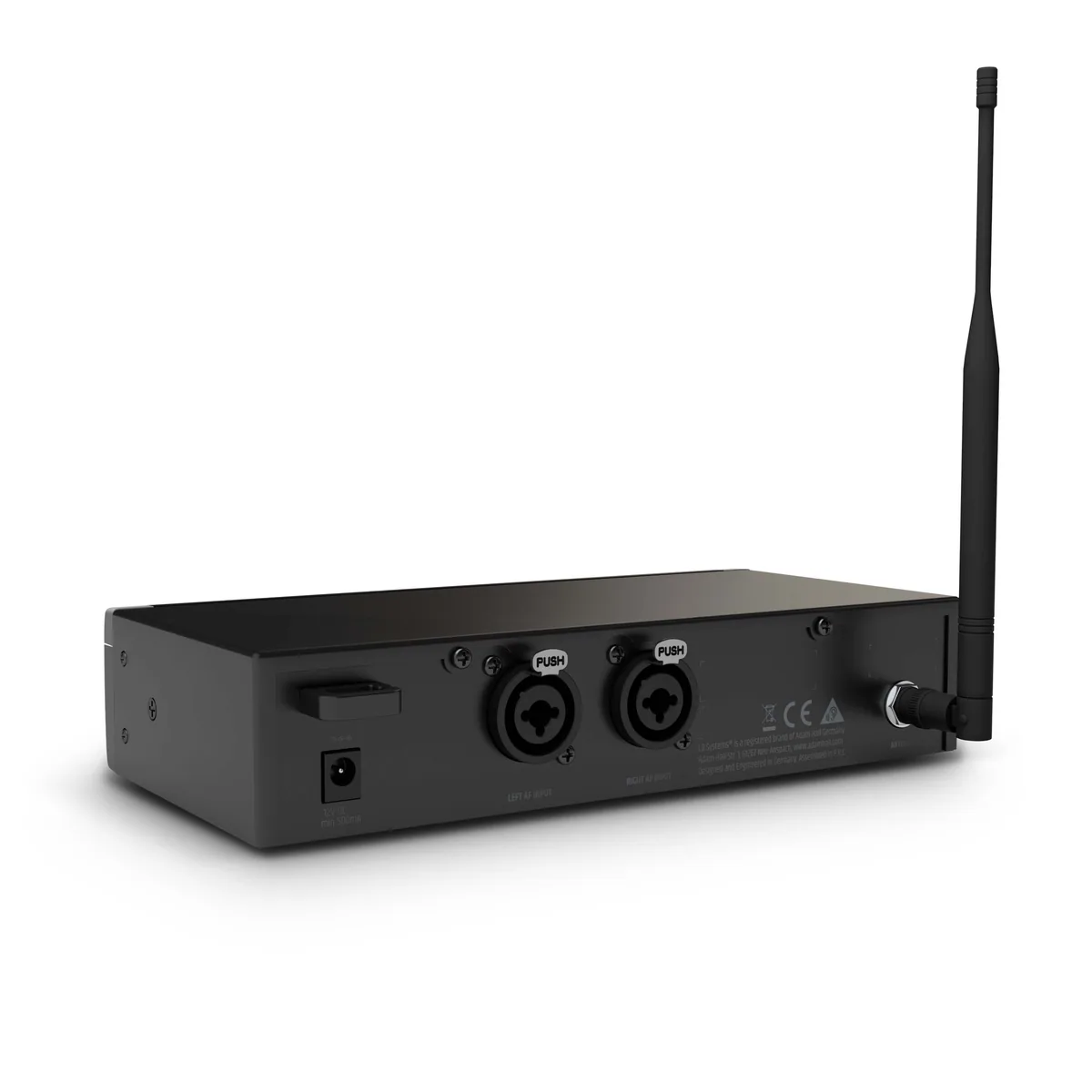

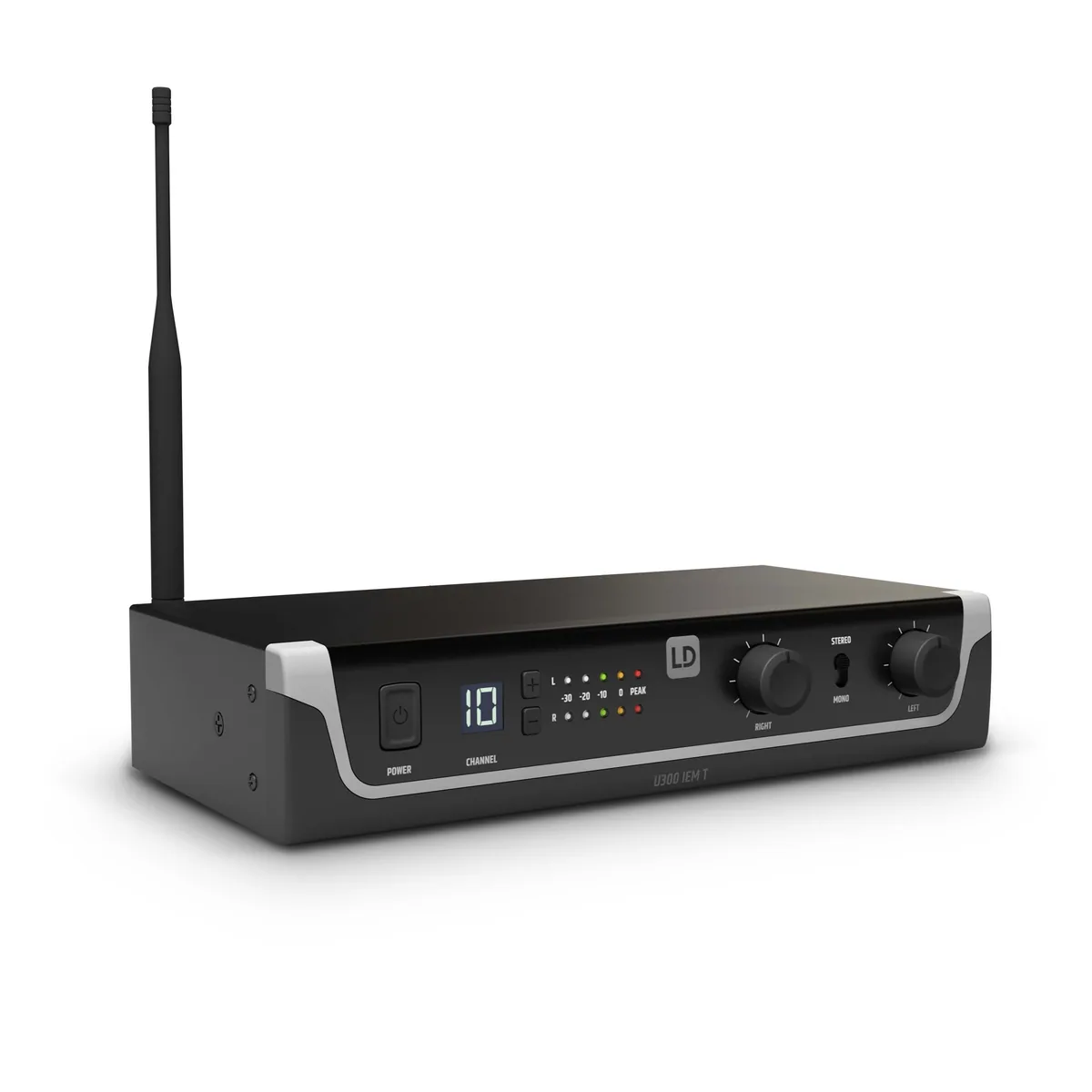

LDU306IEMT - LD Systems U306 IEM Transmitter

Product typeIn-ear Monitoring Accessories
TypeTransmitters
Modes of operationmono/stereo
Rated HF output power10 mW
Signal-to-noise ratio90 dB
Total Harmonic Distortion (THD)<0,5%
Dynamic range88 dB
Inputs2
Input connectorsXLR
Input impedance (kOhms)8.5 kOhm
Input sensitivity-4.5 dbu
Antenna connectorBNC
ControlsPower On/Off
Power consumption1.7 W
Operating voltage12 - 18 V DC
Width212 mm
Height43 mm
Depth123 mm
Weight0.66 kg
Accessories (included)Power supply

LDU306IEMR - LD Systems U306 IEM Receiver

Transmission frequency range655 - 679 MHz
Channels12
Transmission methodFM, mono/stereo
Frequency response50 - 16.000 Hz
Audio output3.5 mm TRS
Minimum connected impedance16 Ohm(s)
Max. audio output level73 (@ 33 Ohms load capacity) mW
IndicatorsRF (LED)
Operating time< 10 hours
Featuresincl. batteries

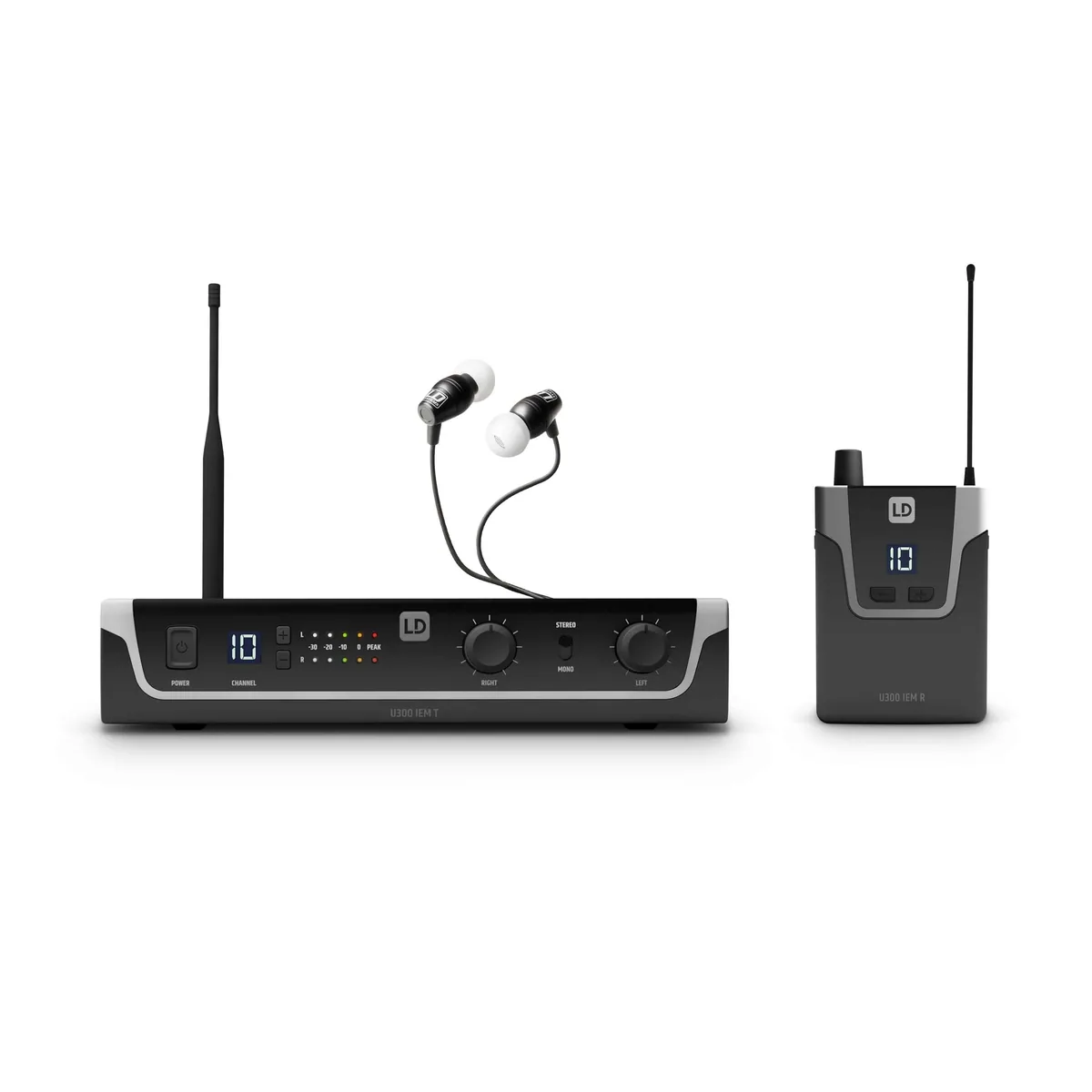

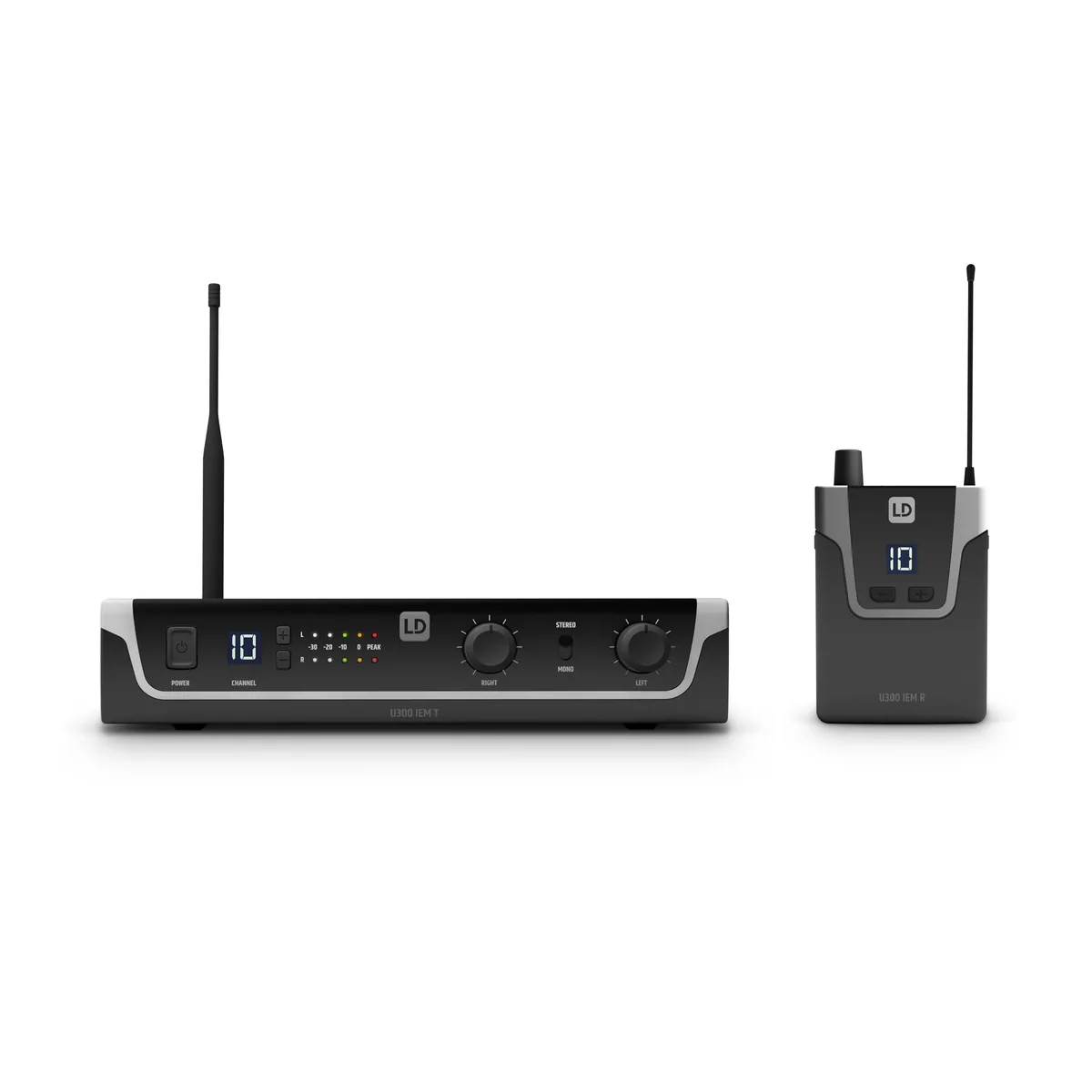

In the box

  • LD Systems U306 IEM Transmitter
  • LD Systems U306 IEM Receiver
