IK Multimedia

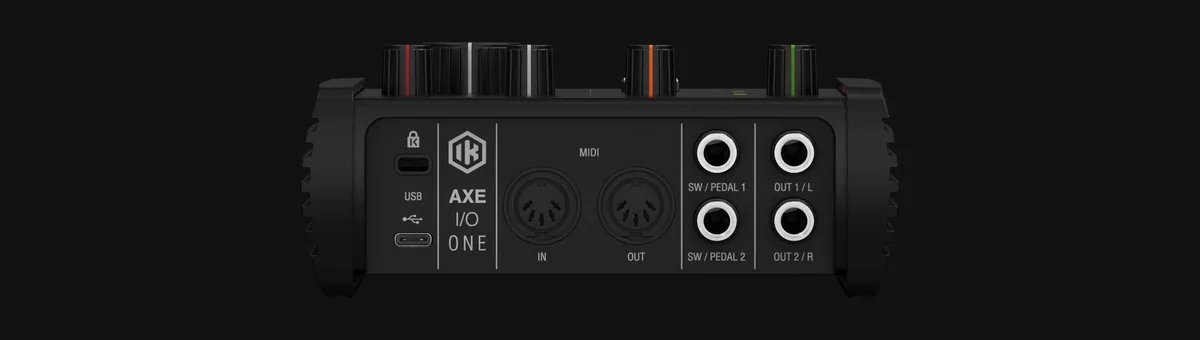

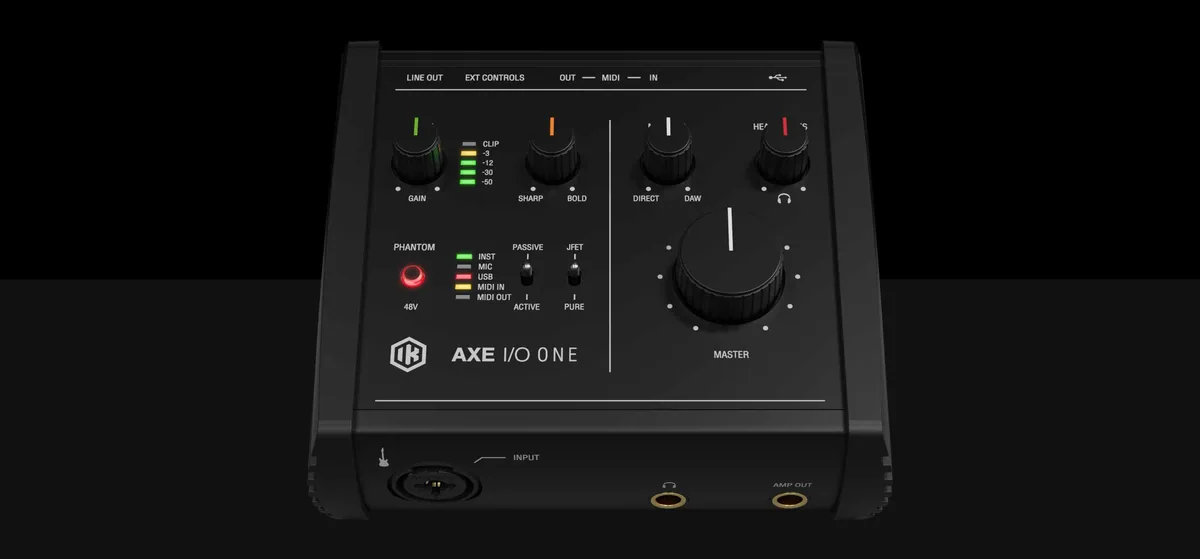

IK Multimedia AXE I/O One Desktop Audio Interface
- SKU
- IP-INT-AXEIOONE-IN
- Barcode
- 8025813906037
- 1-In / 3-Out Compact Audio Interface
- Adjustable Input Impedance with Z-TONE
- PURE Class-A Mic Preamp with JFET Stage
- Active or Passive Pickup Selection
Overview
IK Multimedia AXE I/O One Desktop Audio Interface by IK Multimedia, model IP-INT-AXEIOONE-IN. Listed under Audio Input & Output in our Music & Audio range.
Weight: 0.8 lb / 0.4 kg.
Key features
- 1-In / 3-Out Compact Audio Interface
- Adjustable Input Impedance with Z-TONE
- PURE Class-A Mic Preamp with JFET Stage
- Active or Passive Pickup Selection
- Amp Out with Ground Loop Interrupter
- MIDI I/O, Footswitch/Expression I/O
Buy the IK Multimedia AXE I/O One Desktop Audio Interface online
Order the IK Multimedia AXE I/O One Desktop Audio Interface online for €128.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.
- IK Multimedia AXE I/O One Desktop Audio Interface online kopen met levering in Nederland en België.
- IK Multimedia AXE I/O One Desktop Audio Interface online kaufen mit Lieferung nach Deutschland und Österreich.
- Achetez IK Multimedia AXE I/O One Desktop Audio Interface en ligne avec livraison en France et en Belgique.
- Compra IK Multimedia AXE I/O One Desktop Audio Interface online con entrega en España.
- Compra IK Multimedia AXE I/O One Desktop Audio Interface online con consegna in Italia.
- Kup IK Multimedia AXE I/O One Desktop Audio Interface online z dostawą do Polski.
Specifications
| Form Factor | Desktop |
|---|---|
| Display | None |
| Channels of I/O | 1 Input / 3 Outputs at 192 kHz |
| Built-In DSP | None |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Preamps | 1 Preamp |
| Built-In Microphone | None |
| Input Level Adjustment | 1 x Knob |
| Expansion Slots | None |
Signal Processing
| Pad | None |
|---|---|
| High-Pass Filter | None |
| Solo/Mute | None |
Connectivity
| Analogue Audio I/O | 1 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel) 2 x 1/4" TS Line Output 1 x 1/4" TS Re-Amp Output (Front Panel) 1 x 1/4" TRS Headphone Output |
|---|---|
| Phantom Power | 48 V, Selectable On/Off |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB-C (on Interface) |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | 1 x USB-C (USB 2.0, Power Input) |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | 1 x DIN 5-Pin Input 1 x DIN 5-Pin Output |
| Other I/O | 1 x 1/4" TRS Footswitch/Control Input 1 x 1/4" TRS Footswitch/Control Output |
| Wireless Connectivity | None |
Performance
| Frequency Response | 3 Hz to 32 kHz |
|---|---|
| Dynamic Range | 117 dB |
Digital Audio
| Sample Rates | 192 kHz |
|---|---|
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit |
| Sync Sources | MIDI Time Code (MTC) |
Audio Storage & Playback
| Memory Card Slot | None |
|---|
Compatibility
| OS Compatibility | Windows macOS *As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility |
|---|---|
| Included Software | Ableton Live Lite |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
| Included Plug-Ins | Special Processing: AmpliTube 5 SOE TONEX SOE |
| Mobile App Compatible | No *As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Required Hardware | USB Cable, USB-C Port |
Power
| Power Requirements | USB Bus Power |
|---|---|
| AC/DC Power Adapter | 5 VDC |
Physical
| Anti-Theft Features | Kensington Security Slot |
|---|---|
| Dimensions | 5.5 x 5 x 2.75" / 14 x 12.7 x 6.99 cm |
| Weight | 0.8 lb / 0.4 kg |
In the box
- IK Multimedia AXE I/O One Desktop Audio Interface
- USB Connection Cable
