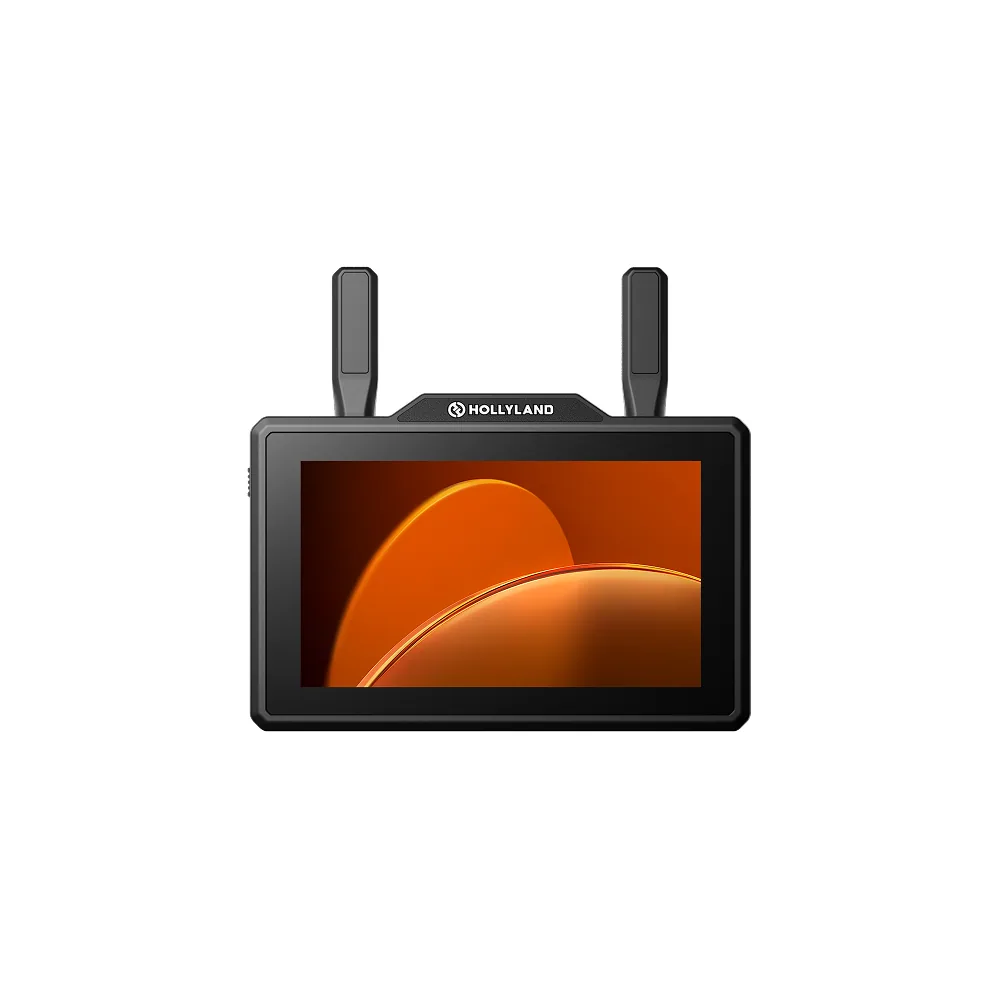

Hollyland Pyro 5 Wireless Transceiver Monitor
Hollyland Pyro 5 Wireless Transceiver Monitor
Hollyland Pyro 5 Wireless Transceiver Monitor
Hollyland Pyro 5 Wireless Transceiver Monitor
Hollyland Pyro 5 Wireless Transceiver Monitor
Hollyland Pyro 5 Wireless Transceiver Monitor
Hollyland

Hollyland Pyro 5 Wireless Transceiver Monitor

SKU
PY5MON
Model
PYRO 5
Barcode
191460008849
  • Monitor Wireless Video up to 1312' Away
  • 5.5" Touchscreen 1920 x 1080 Display
  • Transmitter & Receiver Mode Switching

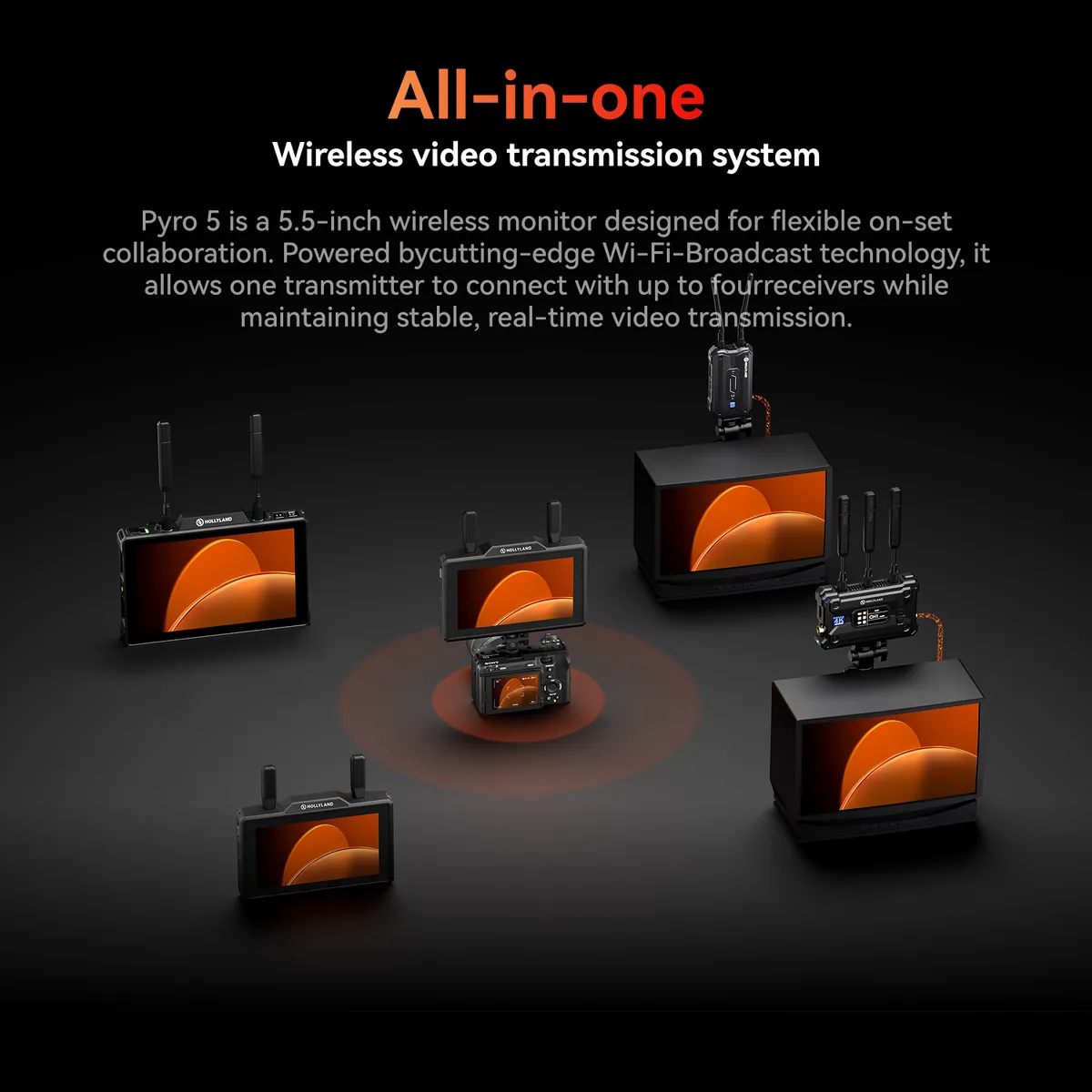

  • One Transmitter Can Send to 4 Receivers

Overview

Hollyland Pyro 5 Wireless Transceiver Monitor by Hollyland. Listed under Production Monitors in our Video range.

Weight: 19.0 oz / 538.00 g.

Key features

  • Monitor Wireless Video up to 1312′ Away
  • 5.5″ Touchscreen 1920 x 1080 Display
  • Transmitter & Receiver Mode Switching
  • One Transmitter Can Send to 4 Receivers
  • Up to 1080p60 SDI/HDMI Video
  • High 1500 cd/m² Brightness

Buy the Hollyland Pyro 5 Wireless Transceiver Monitor online

Order the Hollyland Pyro 5 Wireless Transceiver Monitor online for €466.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Hollyland Pyro 5 Wireless Transceiver Monitor online kopen met levering in Nederland en België.
  • Hollyland Pyro 5 Wireless Transceiver Monitor online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Hollyland Pyro 5 Wireless Transceiver Monitor en ligne avec livraison en France et en Belgique.
  • Compra Hollyland Pyro 5 Wireless Transceiver Monitor online con entrega en España.
  • Compra Hollyland Pyro 5 Wireless Transceiver Monitor online con consegna in Italia.
  • Kup Hollyland Pyro 5 Wireless Transceiver Monitor online z dostawą do Polski.

Specifications

Display

Panel TypeLCD
Display Size5.5" / 14.0 cm
Native Resolution1920 x 1080
Aspect Ratio16:9
TouchscreenYes
Maximum Brightness1500 nits / cd/m 2
Contrast Ratio1000:1
HDR SupportNo
LUT SupportYes
Image ControlsFalse Colour, Focus Assist, Waveform, Zebra

Inputs/Outputs

Antenna I/O2x RP-SMA
Video I/O1 x HDMI 1.4b Input 1 x SDI (3G-SDI) Input 1 x HDMI 1.4b Loop Output 1 x SDI (3G-SDI) Loop Output
Embedded AudioHDMI: 8-Channel
Audio I/O1x 1/8" / 3.5 mm Headphone Output
Built-In SpeakerNo
Power I/O1x Barrel (18 VDC) Input
Other I/O1x USB-C
Media/Memory Card SlotSingle Slot: SD (Unspecified Type) [LUT/Firmware Update Only]

Wireless

Wireless Range1312.3' / 400 m
Channel Bandwidth40 MHz, 20 MHz
Latency60 ms
RF Power< 23 dBm
RF Sensitivity-85 dBm

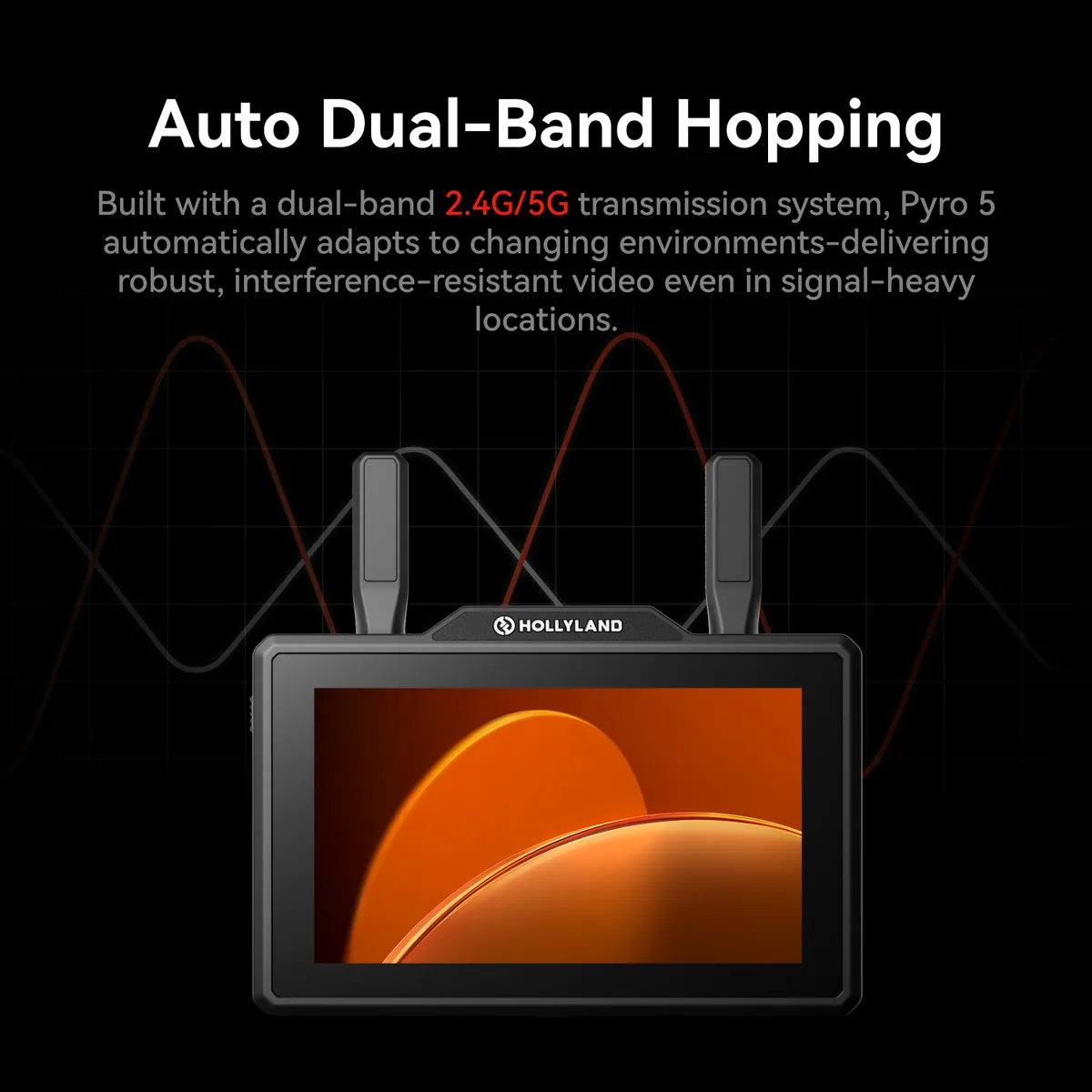

Wi-FiUnspecified Version; Dual-Band (2.4 & 5 GHz)
BluetoothNo
Mobile App CompatibleYes: Android & iOS

Format Support

Video FormatHDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Audio Format8-Channel 8-Bit
Timecode SupportNo

Recording

Pulldown ConversionNo
Camera TriggerNo
Pre-Roll RecordNo
Encoding Formatsx H.264
Closed Caption SupportNo
Reference InputNo

Power

Input Power10 to 18 VDC 6 to 16 VDC
Battery1x L-Series Mount on Fixed Plate
Power Consumption14 W 16.5 W

Mounting

Tripod/Accessory Mounting1/4"-20 Female

General

Environmental ResistanceNo
Operating Conditions14 to 113°F / -10 to 45°C
Storage Conditions-40 to 140°F / -40 to 60°C
Dimensions7.1 x 5 x 1.8" / 180 x 127 x 45.8 mm
Weight19.0 oz / 538.00 g

In the box

  • Hollyland Pyro 5 Wireless Transceiver Monitor
  • 2 x Antenna
  • Tempered Glass Screen Protector
  • USB-C OTG Adapter
