DJI
DJI O4 Air Unit Pro
- SKU
- 190021122451
- Barcode
- 190021122451
- Add FPV Capabilities to Your Drone

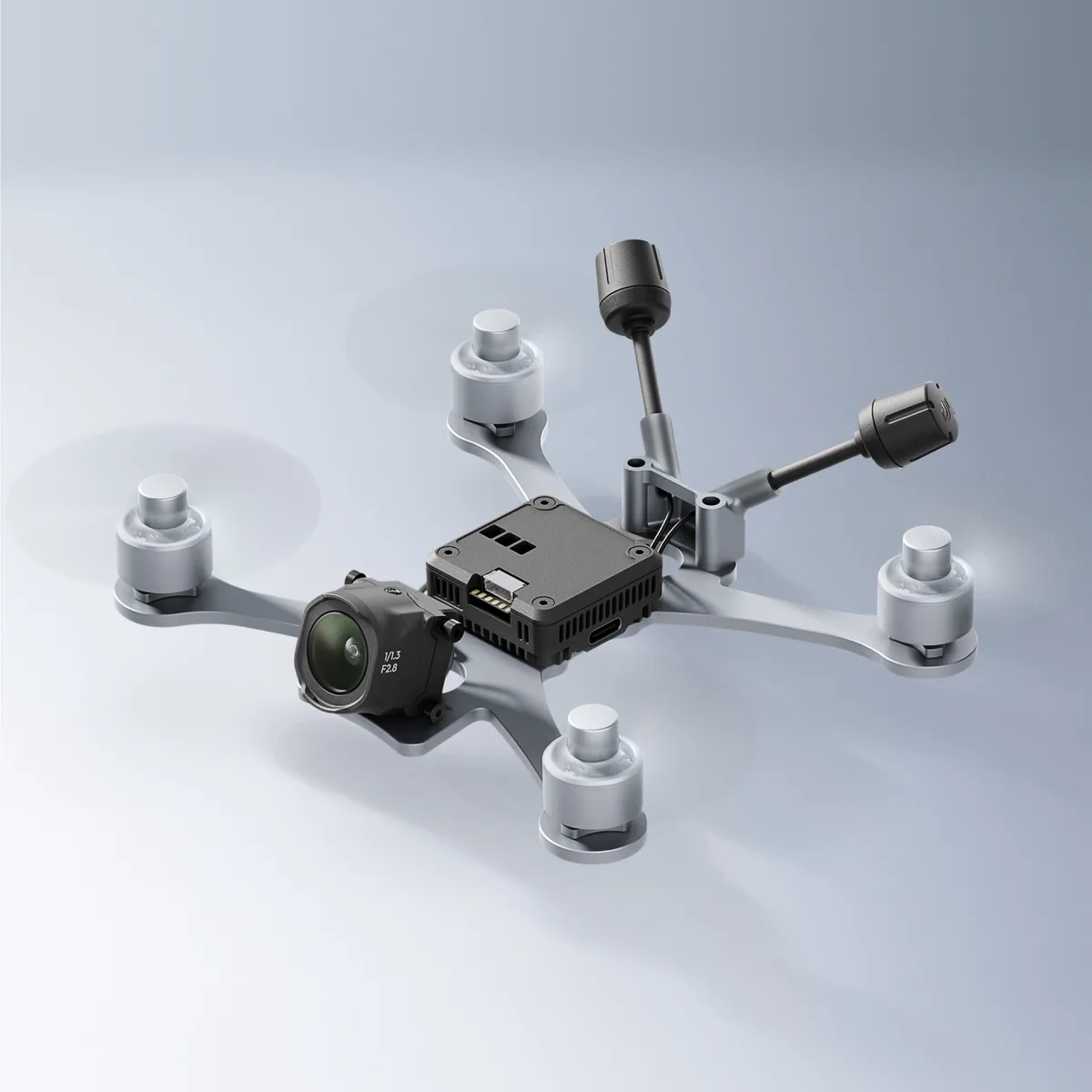

- Fits Drone Frames as Small as 2"
- Works with DJI Goggles
- DJI O4 Transmission w/ 2T2R Antennas
Overview
DJI O4 Air Unit Pro by DJI, model 190021122451. Listed under Drone FPV & Optics in our Video range.
Weight: 0.6 oz / 15.6 g (Without Camera Module) 1.1 oz / 32 g (With Camera Module) 0.1 oz / 2.1 g (Each Antenna).
Key features
- Add FPV Capabilities to Your Drone
- Fits Drone Frames as Small as 2″
- Works with DJI Goggles
- DJI O4 Transmission w/ 2T2R Antennas
- Stream 1080p100 Video
- Up to 9.3-Mile Range
Buy the DJI O4 Air Unit Pro online
Order the DJI O4 Air Unit Pro online for €237.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.
- DJI O4 Air Unit Pro online kopen met levering in Nederland en België.
- DJI O4 Air Unit Pro online kaufen mit Lieferung nach Deutschland und Österreich.
- Achetez DJI O4 Air Unit Pro en ligne avec livraison en France et en Belgique.
- Compra DJI O4 Air Unit Pro online con entrega en España.
- Compra DJI O4 Air Unit Pro online con consegna in Italia.
- Kup DJI O4 Air Unit Pro online z dostawą do Polski.
Specifications
General
| Camera | Image Sensor: 1/1.3" CMOS FOV: 155° Equivalent Focal Length: 12mm Aperture: f/2.8 Minimum Focus Distance: 2' / 0.6 m ISO Range (Auto): 100 to 25,600 ISO Range (Manual): 100 to 25,600 Video Resolution (4K 4:3): 3840 x 2880 at 30, 48, 50, and 60 fps Video Resolution (4K 16:9): 3840 x 2160 at 30, 48, 50, 60, 100, and 120 fps Video Resolution (2.7K 4:3): 2888 x 2016 at 30, 48, 50, and 60 fps Video Resolution (2.7K 16:9): 2688 x 1512 at 30, 48, 50, 60, 100, and 120 fps Video Resolution (1080p 4:3): 1440 x 1080 at 30, 48, 50, 60, 100, and 120 fps Video Resolution (1080p 16:9): 1920 x 1080 at 30, 48, 50, 60, 100, and 120 fps Video Format: MP4 Video Bit Rate (Max): 130 Mb/s |
|---|---|
| Storage Capacity | 4 GB |
| Memory Card Type | microSD (Up to 512 GB) |
Wireless
| Wireless | 5.8 GHz Radio/RF |
|---|---|
| Mobile App Compatible | No |
| Type of Transmitter | Operating Freqency: 5.17 to 5.25 and 5.725 to 5.85 Transmitter Power (EIRP): 5.1 GHz: <23 dBm (COE) Transmitter Power (EIRP): 5.8 GHz: <33 dBm (FCC), <14 dBm (COE), and <30 dBm (SRRC) Transmission Range: With DJI Goggles 3/N3: Up to 9.3 Miles / 15 km (FCC), Up to 5 Miles / 8 km (COE/SRRC) Live View Quality: 1080p at 30, 48, 50, 60, or 100 fps Communication Bandwidth: 60 MHz (Max) Antenna: 2T2R Channels with DJI Goggles 3/N3: 60/40 MHz (1 Channel), 20/10 MHz (3 Channels) Channels with DJI Goggles 2/Integra: 40 MHz (1 Channel), 20/10 MHz (3 Channels) Channels (FCC/SRRC/COE, 60/40 MHz): Channel 1 at 5794.5 MHz Channels (FCC/SRRC/COE, 20/10 MHz): Channel 1 at 5768.5 MHz, Channel 2 at 5789.5 MHz, and Channel 3 at 5814.5 MH |
| Latency | With DJI Goggles 3, Racing Mode, and 1080p/100: Down to 15 ms With DJI Goggles N3, Racing Mode, and 1080p/100: Down to 19 ms With DJI Goggles 2 or Integra and 1080p/100: Down to 30 ms |
Power
| Power Source | Proprietary Interface |
|---|---|
| DC Input Power | 7.4 to 26.4 VDC |
Physical
| Colour | Black |
|---|---|
| Operating Conditions | 14 to 104°F / -10 to 40°C |
| Cable Length | 5.5" / 140 mm (Coaxial) 3.9" / 100 mm (3-in-1) |
| Dimensions | 1.3 x 1.3 x 0.5" / 33.5 x 33.5 x 13 mm (Transmission Module) 1.01 x 0.9 x 0.8" / 25.55 x 23.3 x 20 mm (Camera Module) 4.3" / 110 mm (Each Antenna) |
| Weight | 0.6 oz / 15.6 g (Without Camera Module) 1.1 oz / 32 g (With Camera Module) 0.1 oz / 2.1 g (Each Antenna) |

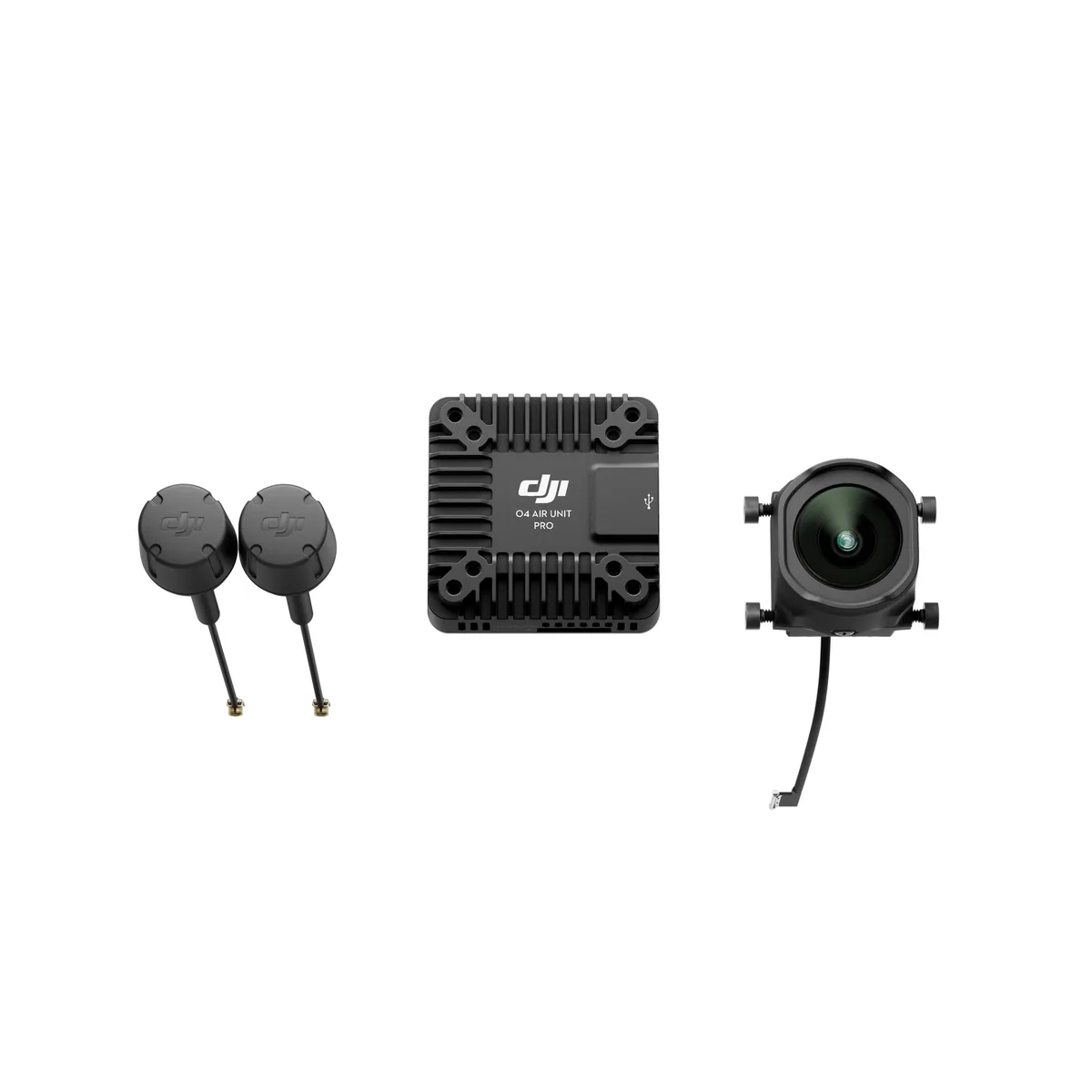

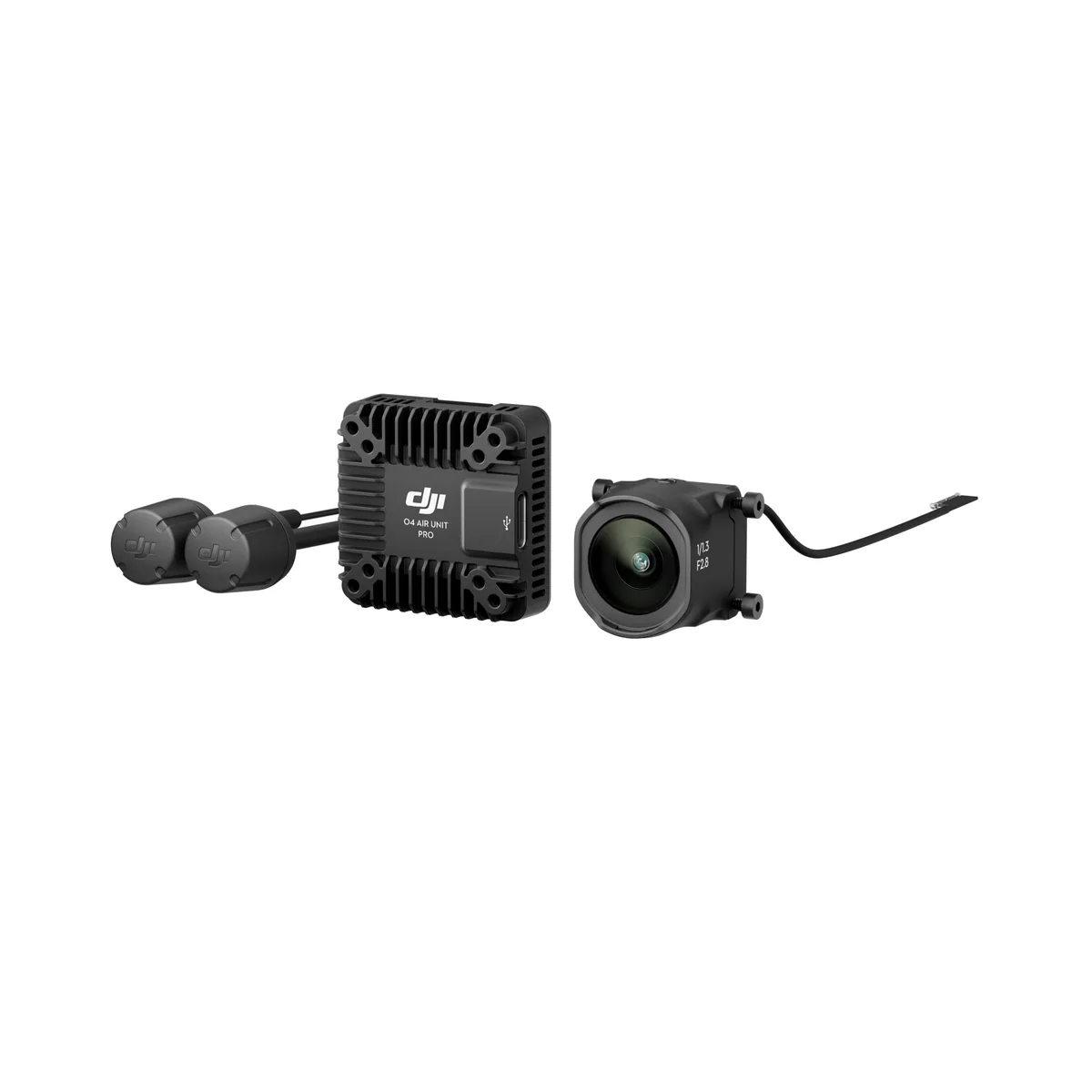

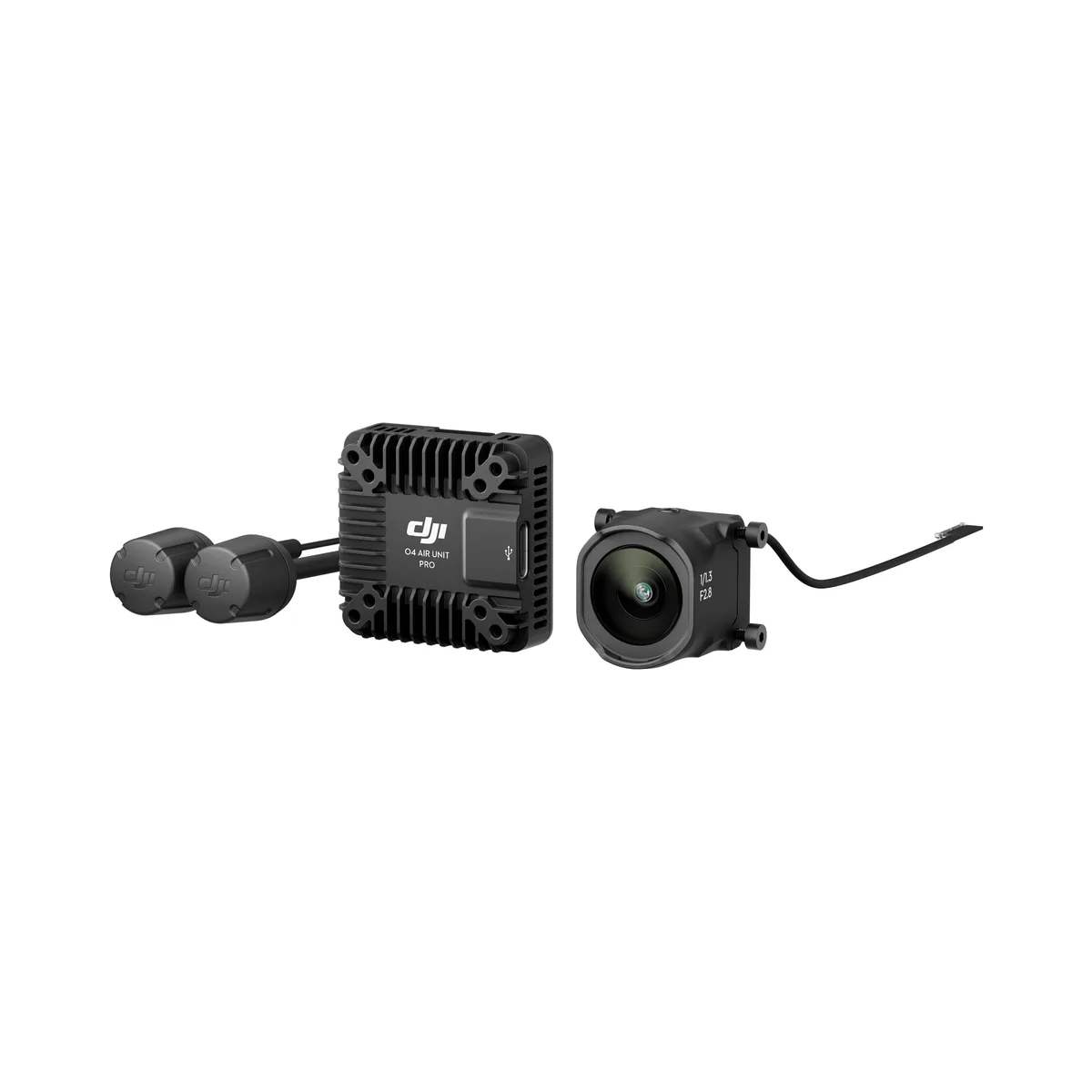

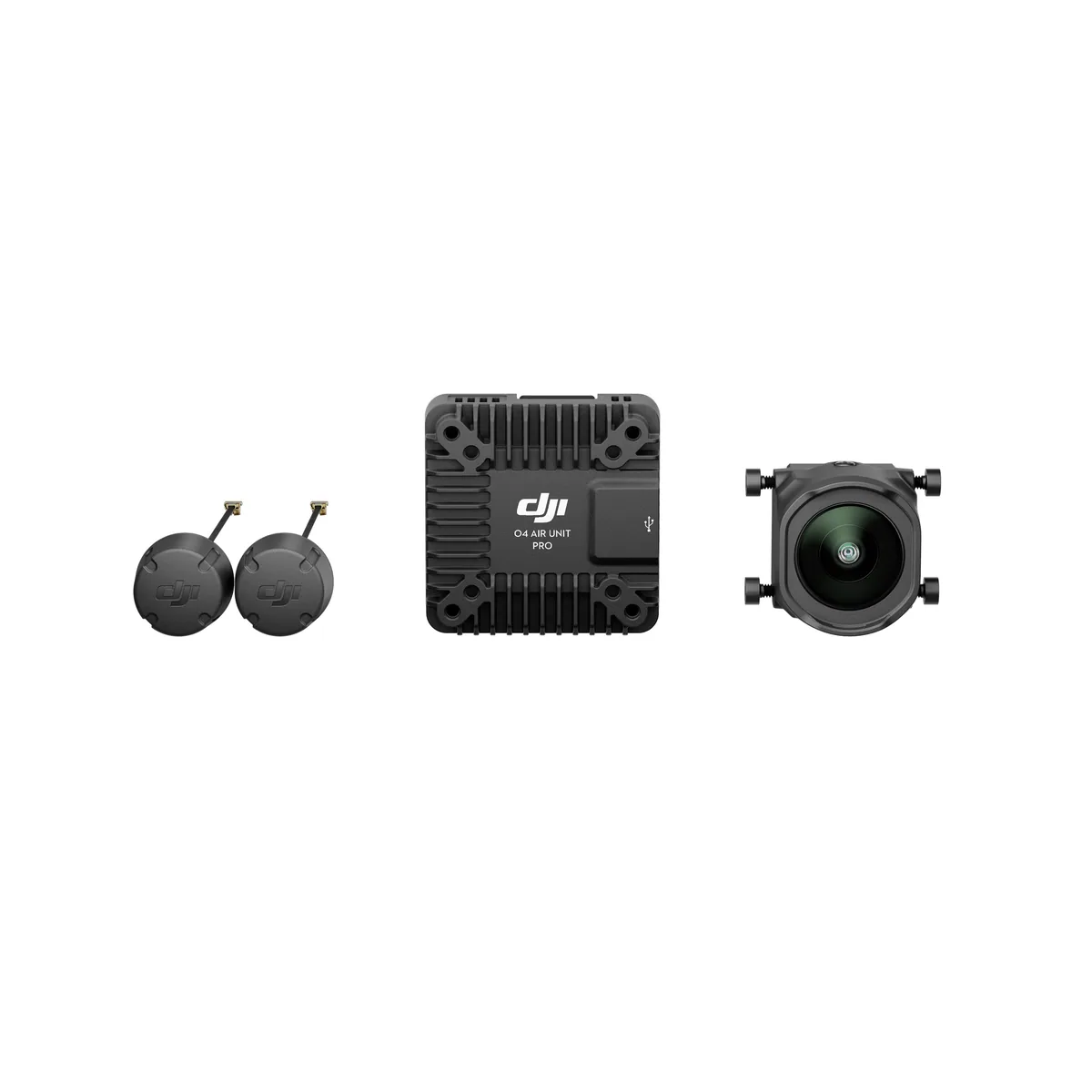

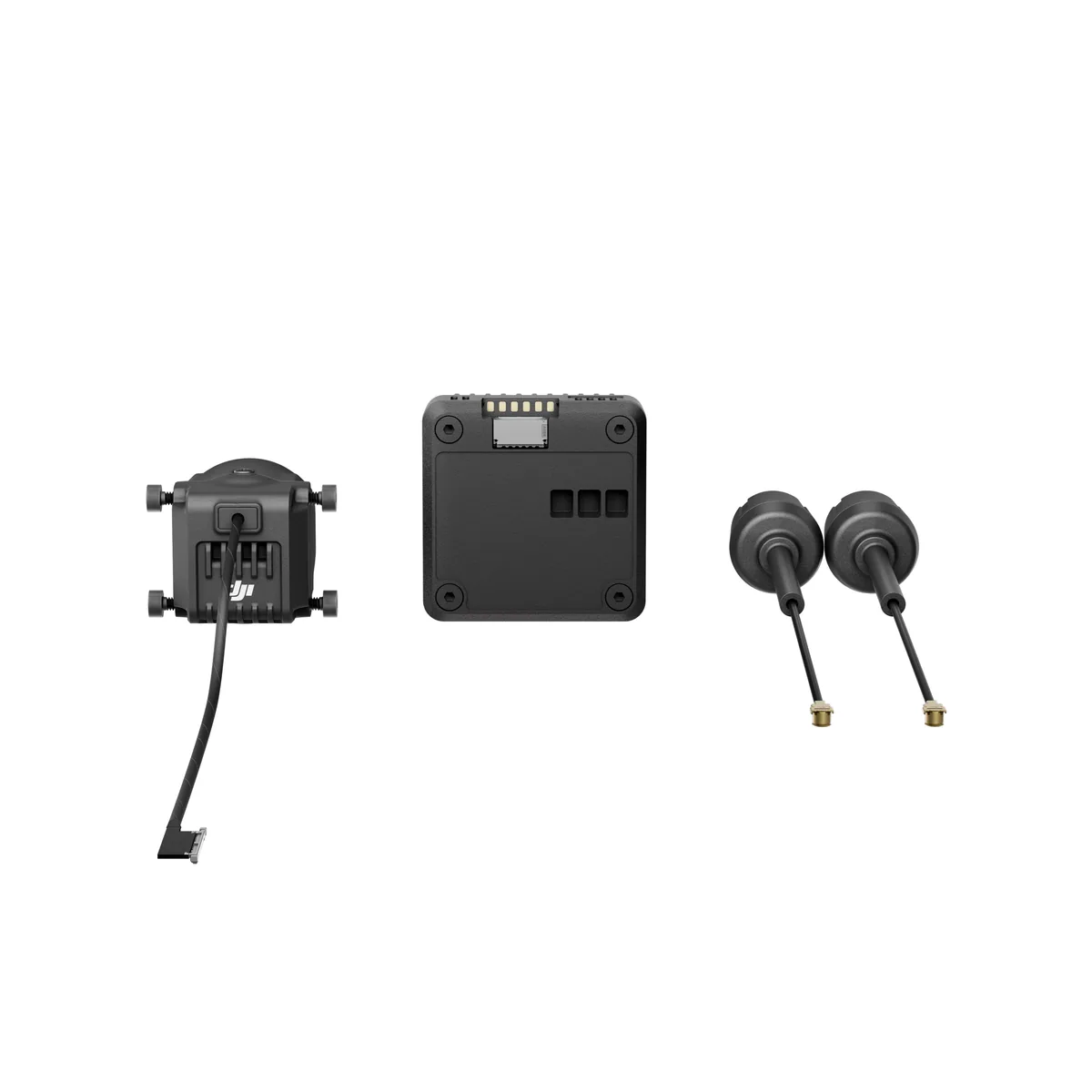

In the box
- DJI O4 Air Unit Pro
- Camera Module
- Transmission Module
- Antenna
- 3-in-1 Cable
