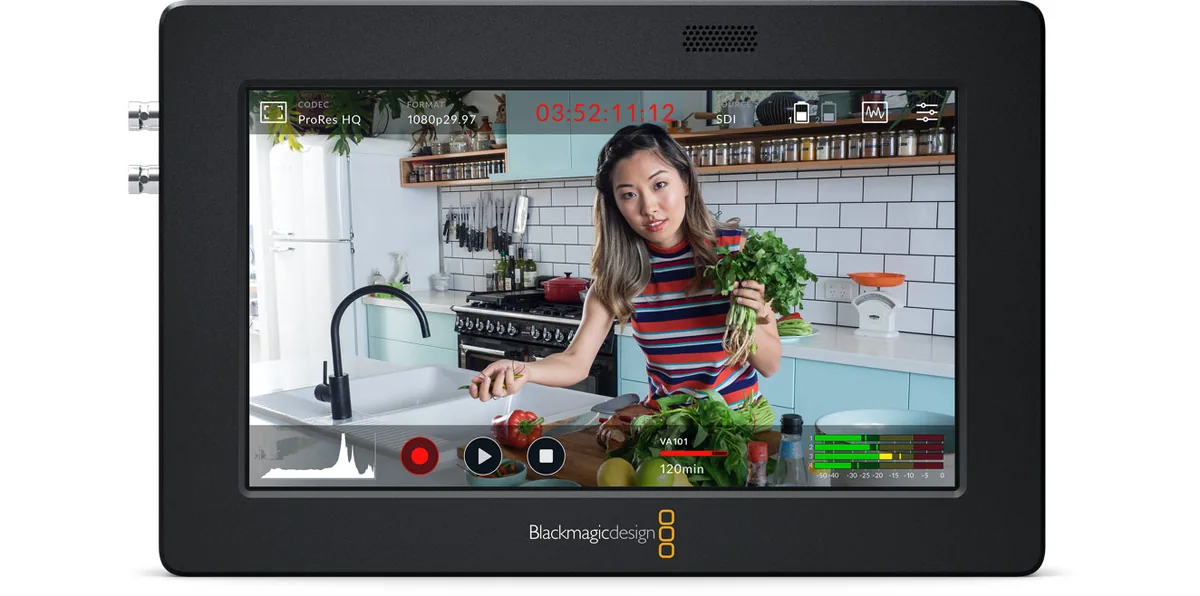

Blackmagic Video Assist 3G 5″ Portable Monitor
Blackmagic

Blackmagic Video Assist 3G 5″ Portable Monitor

SKU
BMD-HYPERD/AVIDA03/5
Barcode
9338716006407
  • 1920 x 1080 Touchscreen LCD
  • Records 1080p up to 60 fps
  • 10-Bit, 4:2:2 ProRes & DNxHD Encoding
  • HDMI and 6G-SDI Video Inputs

Overview

Blackmagic Video Assist 3G 5″ Portable Monitor by Blackmagic, model BMD-HYPERD/AVIDA03/5. Listed under Video Recorders in our Video range.

Weight: 362.02 g.

Key features

  • 1920 x 1080 Touchscreen LCD
  • Records 1080p up to 60 fps
  • 10-Bit, 4:2:2 ProRes & DNxHD Encoding
  • HDMI and 6G-SDI Video Inputs
  • Loop-Through Video Outputs

Buy the Blackmagic Video Assist 3G 5" Portable Monitor online

Order the Blackmagic Video Assist 3G 5" Portable Monitor online for €340.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Blackmagic Video Assist 3G 5" Portable Monitor online kopen met levering in Nederland en België.
  • Blackmagic Video Assist 3G 5" Portable Monitor online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Blackmagic Video Assist 3G 5" Portable Monitor en ligne avec livraison en France et en Belgique.
  • Compra Blackmagic Video Assist 3G 5" Portable Monitor online con entrega en España.
  • Compra Blackmagic Video Assist 3G 5" Portable Monitor online con consegna in Italia.
  • Kup Blackmagic Video Assist 3G 5" Portable Monitor online z dostawą do Polski.

Specifications

Display

TypeLCD touchscreen
Size12.7 cm
Resolution1920 x 1080
Viewing Angle135°

Connections

SDI Video Input1 x Micro BNC
SDI Video Output1 x Micro BNC
HDMI Video Input1 x HDMI Type A
HDMI Video Output1 x HDMI Type A
SDI Audio Input16 channels embedded via SDI
SDI Audio Output16 channels embedded via SDI
HDMI Audio Input8 channels embedded
HDMI Audio Output8 channels embedded
Audio Output1 x 3.5 mm stereo analogue audio output jack
USB Interface1 x USB 2.0 (Mini-B connector)

Recording

Recording MediaUHS-1 SDHC/SDXC cards
Codecs SupportedApple ProRes 422 HQ, 422, LT, Proxy Avid DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF
Supported Video FormatsSDI: 1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60 1920 x 1080PsF 23.98/24 1920 x 1080i 50/59.94/60 1280 x 720p 50/59.94/60 625/50i PAL 525/59.94i NTSC HDMI: 1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60 1920 x 1080i 50/59.94/60 1280 x 720p 50/59.94/60 480p60 576p50 625/25 PAL 525/29.97 NTSC
Recording TimeWith 128GB SD card: Apple ProRes 422 HQ: 1.61 hours ProRes 422: 2.43 hours ProRes LT: 3.47 hours ProRes Proxy: 7.9 hours
SDI Video Sampling4:2:2 YUV
SDI Audio Sampling48 kHz, 24-bit
SDI Colour Precision10-bit
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M
SDI Metadata SupportHD RP188 and closed captioning
SDI Colour SpaceREC 601, REC 709
HDMI Colour Precision10-bit
HDCP CompatibleNo

General

OS CompatibilityMac OS X 10.9 Mavericks Mac OS X 10.10 Yosemite or later Windows 7 Windows 8
Power Requirements12 VDC - DC Input can operate on a voltage tolerance between 10.8 volts to 17 volts.
Batteries2 x L-Series batteries
AC Adapter110 to 240 VAC
Operating Temperature5 to 40°C
Storage Temperature-21 to 45°C
Relative Humidity0 to 90% non-condensing
Dimensions14.30 x 3.05 x 8.99 cm
Weight362.02 g

In the box

  • Blackmagic Design Video Assist
  • 12V Universal Power Supply with International Socket Adapters
