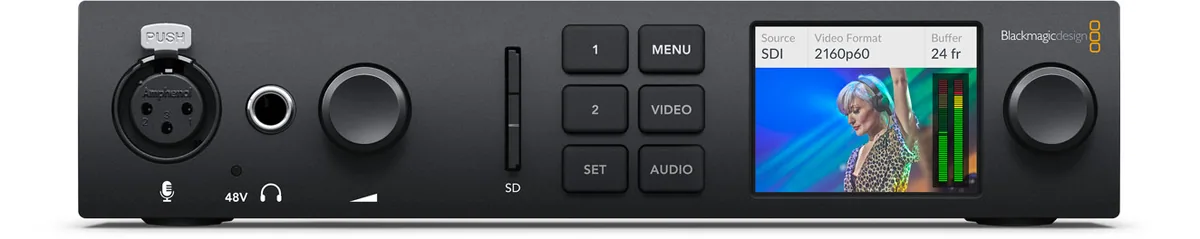

Blackmagic UltraStudio 4K Mini
Blackmagic

Blackmagic UltraStudio 4K Mini

SKU
BDLKULSDMINI4K
Barcode
9338716006087
  • 12G‑SDI Technology for Ultra HD
  • Thunderbolt 3
  • 12G-SDI, HDMI 2.0
  • Amazing Quality in Compressed or Uncompressed

Overview

Blackmagic UltraStudio 4K Mini by Blackmagic, model BDLKULSDMINI4K. Listed under Video Capture & Playback in our Video range.

Weight: 2.65 lb / 1.2 kg.

Key features

  • 12G‑SDI Technology for Ultra HD
  • Thunderbolt 3
  • 12G-SDI, HDMI 2.0
  • Amazing Quality in Compressed or Uncompressed

Buy the Blackmagic UltraStudio 4K Mini online

Order the Blackmagic UltraStudio 4K Mini online for €1,046.99, VAT included. Delivery is free to all 27 EU countries. Orders are usually dispatched within 1 to 3 working days with tracking. There are no customs charges within the EU, you can return it free of charge within 14 days, and it is covered by the two-year EU legal guarantee.

  • Blackmagic UltraStudio 4K Mini online kopen met levering in Nederland en België.
  • Blackmagic UltraStudio 4K Mini online kaufen mit Lieferung nach Deutschland und Österreich.
  • Achetez Blackmagic UltraStudio 4K Mini en ligne avec livraison en France et en Belgique.
  • Compra Blackmagic UltraStudio 4K Mini online con entrega en España.
  • Compra Blackmagic UltraStudio 4K Mini online con consegna in Italia.
  • Kup Blackmagic UltraStudio 4K Mini online z dostawą do Polski.

Specifications

Video

Video Input1 x BNC. SDI
Video Output2 x BNC, SDI Program Out

Supported Video Format

SDI Rate12G, 6G, 3G, 1.5G, 270 Mb
Supported Video ResolutionsSDI Input/Output:
SDI Video Sampling4:2:2, 4:4:4
SDI Color Precision8-, 10-, 12-Bit RGB 4:4:4 in 2D Modes up to 4Kp30 DCI
SDI Color SpaceRec. 601, Rec. 709, Rec. 2020
SDI ComplianceSMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B
SDI Metadata SupportRP 188/SMPTE 12M-2 and Closed Captioning
HDMI Video Sampling4:4:4, 4:2:2, 4:2:0
HDMI Color Precision8-, 10-, 12-Bit

Sync

Sync Input1 x BNC, Tri-Sync/Black Burst

Interface

Thunderbolt1 x Thunderbolt 3 Connector
USB1 x USB Type-C, USB 3.1 Gen 1 (Up to 5 Gb/s)

Control

Remote1 x D-Sub 9, RS-422 (Sony Compatible)

Audio

Audio Input2 x 1/4" RCA. Analog Audio
Audio Output2 x BNC, 3G/HD/SD-SDI
Embedded AudioInput/Output:
Audio Sampling24-Bit, 48 kHz

Media

Card Reader Slot1 x SD Card (UHS-I & UHS-II)

Supported Codecs

Supported CodecsAVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR

General

Power Requirements, Internal100 to 240 VAC
Maximum Power Consumption75.3 W
Environmental Operating Temperature:32 to 104°F / 5 to 40°C
Storage Temperature:-4 to 113°F / -20 to 45°C
Humidity:0 to 90%, Non-Condensing
Dimensions8.27 x 7 x 1.8" / 21 x 17.78 x 4.57 cm
Weight2.65 lb / 1.2 kg
